Gaskets are essential components used in various industries to prevent leakage between mating surfaces. Whether you’re in the petrochemical sector, manufacturing, automotive, or power generation, choosing the right gasket can make the difference between optimal performance and expensive downtime.

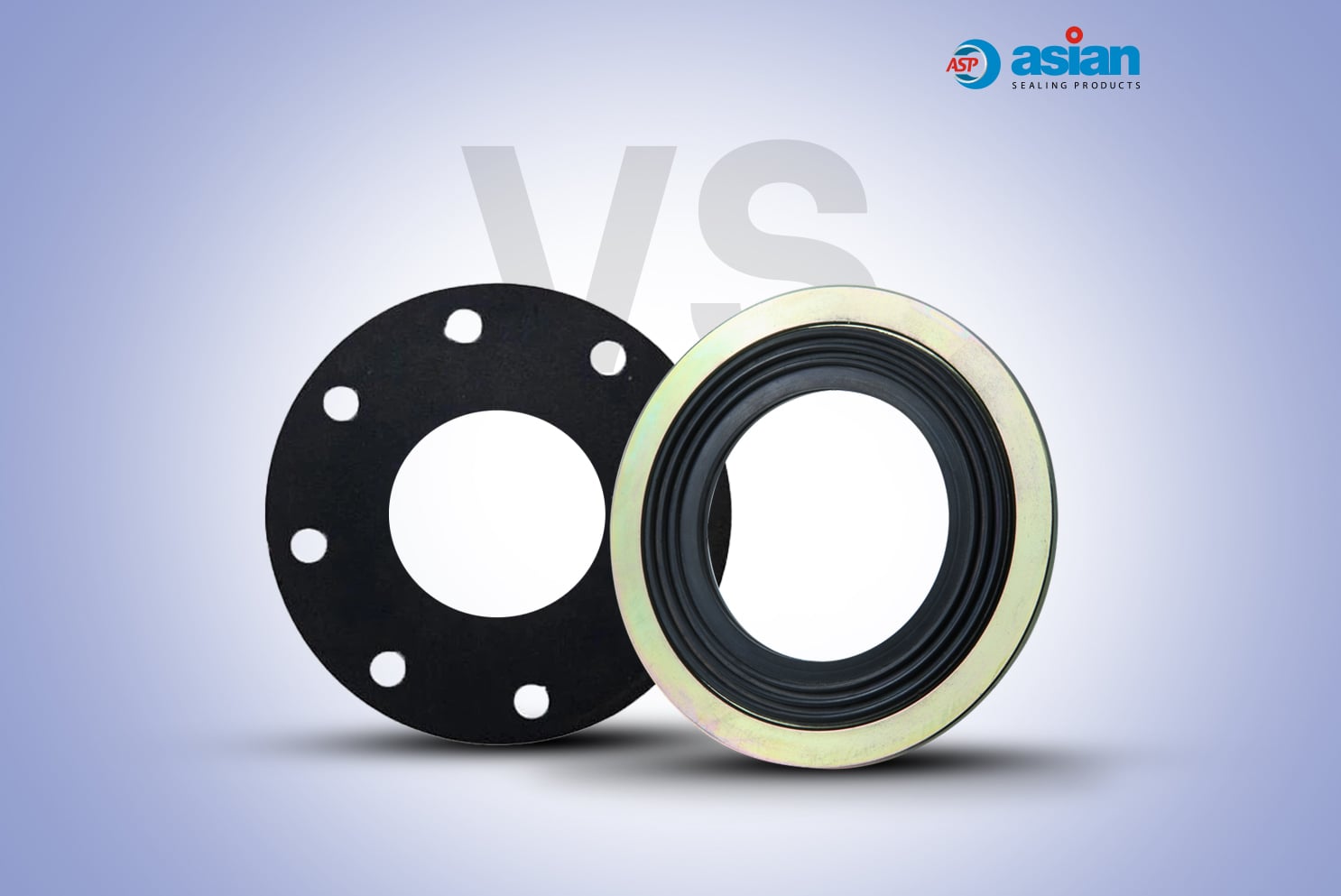

Two primary categories dominate the gasket landscape: metal gaskets and non-metal gaskets. While both serve the same fundamental purpose—sealing joints and flanges—their materials, construction, applications, and advantages differ significantly.
In this in-depth guide, we’ll explore the key differences between metal and non-metal gaskets, helping you determine which one best suits your operational requirements.
What Is a Gasket and Why Is It Important?
A gasket is a sealing material placed between two surfaces to prevent leakage of fluids or gases during compression. Gaskets are essential for:
- Ensuring a tight seal
- Compensating for surface irregularities
- Withstanding high pressures and temperatures
- Reducing vibration or noise in machinery
From oil pipelines to engine blocks, the role of a gasket cannot be understated in ensuring system integrity and safety.
Gasket Materials Overview
Gaskets are categorized primarily based on the materials used in their construction:
| Gasket Type | Base Material |
|---|---|
| Metal Gasket | Stainless Steel, Inconel, Monel, Titanium, etc. |
| Non-Metal Gasket | Rubber, PTFE, Graphite, Compressed Fiber, etc. |
| Semi-Metallic Gasket | Combination of metal and non-metal components (e.g., Spiral Wound Gasket) |
This article focuses on the comparison between metal and non-metal gaskets, with a brief touch on semi-metallic options where necessary.
What Are Metal Gaskets?
Definition
Metal gaskets, also known as ring-type joint (RTJ) gaskets or metallic gaskets, are fabricated entirely from metal and are designed to handle high-pressure, high-temperature environments.
Common Materials
- Stainless Steel (SS 304, 316)
- Inconel
- Monel
- Copper
- Titanium
- Nickel Alloys
Types of Metal Gaskets
- RTJ Gaskets – Typically used in oil and gas applications
- Corrugated Metal Gaskets – Combined with soft layers for better sealing
- Kammprofile Gaskets – Grooved metal core with sealing layers
- Metal Jacketed Gaskets – Soft filler enclosed in a metal jacket
Applications
- Refineries
- Petrochemical Plants
- Power Plants
- High-pressure steam systems
- Offshore drilling rigs
What Are Non-Metal Gaskets?
Definition
Non-metal gaskets are made entirely from soft, pliable materials. They are ideal for applications where surfaces are not perfectly flat or where the pressure and temperature conditions are moderate.
Common Materials
- Rubber (EPDM, Neoprene, Nitrile)
- PTFE (Teflon)
- Graphite
- Compressed Non-Asbestos Fiber (CNAF)
- Silicone
Types of Non-Metal Gaskets
- Full-face gaskets
- Ring gaskets
- Envelope gaskets
- Soft cut gaskets
Applications
- Water treatment plants
- HVAC systems
- Food processing
- Chemical handling
- Low-pressure steam systems
Comparison Table: Metal vs. Non-Metal Gaskets
| Feature | Metal Gaskets | Non-Metal Gaskets |
|---|---|---|
| Material Type | Hard/rigid | Soft/flexible |
| Pressure Tolerance | Up to 20,000 psi | Up to 1,000 psi |
| Temperature Range | Up to 1000°C | Typically up to 300°C |
| Chemical Resistance | Excellent (specific alloys) | Varies by material |
| Reusability | Often reusable | Generally non-reusable |
| Cost | Higher | Lower |
| Sealing Performance | Excellent in harsh environments | Good in moderate conditions |
| Surface Finish Requirement | High precision needed | Can seal rough surfaces |
| Installation | Requires high bolt load | Easier to install |
Factors to Consider When Choosing Between Metal and Non-Metal Gaskets
Selecting the right gasket type involves evaluating several operational and environmental factors:
1. Operating Temperature
If your system runs at temperatures exceeding 400°C, metal gaskets like Inconel or stainless steel are more suitable.
2. Pressure Ratings
Metal gaskets are designed for high-pressure applications (e.g., steam lines, pipelines). Non-metal gaskets are better suited for lower pressures.
3. Chemical Compatibility
Non-metallic gaskets like PTFE are ideal for corrosive environments, but some metal alloys (e.g., Monel) also offer excellent chemical resistance.
4. Surface Finish
Metal gaskets require a smoother flange surface finish, while non-metal gaskets can adapt to rougher surfaces.
5. Cost and Budget
Metal gaskets have a higher upfront cost but offer longer life spans. Non-metal gaskets are more budget-friendly but might need frequent replacement.
6. Reusability
Metal gaskets can be reused in some cases, making them cost-effective in long-term applications. Non-metal gaskets, once compressed, usually cannot be reused.
Use Case Scenarios: Which Gasket Works Best?
Scenario 1: High-Temperature, High-Pressure Steam Pipeline
Recommended: Metal Gasket (RTJ or Spiral Wound)
Reason: Can withstand extreme heat and pressure; maintains seal integrity under thermal cycling.
Scenario 2: Food Processing Unit with Sanitary Requirements
Recommended: Non-Metal Gasket (PTFE or Silicone)
Reason: Chemical resistance, FDA compliance, and easy installation.
Scenario 3: Offshore Drilling Application
Recommended: Metal Gasket (Inconel or Monel RTJ)
Reason: High pressure and corrosive seawater conditions demand strong metal seals.
Scenario 4: Water Pipeline in Residential Building
Recommended: Non-Metal Gasket (Rubber or CNAF)
Reason: Cost-effective and suitable for low-pressure systems.
Performance Characteristics of Metal Gaskets
Metal gaskets offer several performance benefits:
- Withstand thermal cycling without compromising seal
- Endure vibration and mechanical loads
- Resistant to creep and compression set
- High resistance to blowouts
- Exceptional long-term reliability in critical systems
However, they require precise torque and high bolt loads during installation.
Performance Characteristics of Non-Metal Gaskets
Non-metal gaskets are prized for their adaptability and ease of use:
- Provide effective seals on uneven surfaces
- Require lower bolt torque
- Easy to cut, handle, and replace
- Cost-effective for frequent maintenance cycles
- Available in custom shapes and sizes
However, they tend to degrade faster under harsh thermal or mechanical stress.
Semi-Metallic Gaskets: The Middle Ground
In situations where both flexibility and strength are required, semi-metallic gaskets such as Spiral Wound Gaskets (SWG) or Kammprofile gaskets can be ideal.
Advantages of Semi-Metallic Gaskets:
- Handle high pressure and temperature
- Seal uneven surfaces better than metal gaskets
- More cost-effective than solid metal gaskets
These are commonly used in oil refineries, power plants, and heat exchangers.
Compliance and Industry Standards
When selecting gaskets, ensure they meet industry standards for safety and performance:
- ASME B16.20 – Metallic Gaskets for Pipe Flanges
- ASME B16.21 – Nonmetallic Flat Gaskets
- EN 13555 – Gasket Testing Standards
- API 6A / API 17D – For oilfield applications
Choosing certified gasket manufacturers ensures reliability, traceability, and performance.
Sustainability and Environmental Considerations
With rising awareness around environmental responsibility, gasket users are evaluating the sustainability aspects too:
- Metal gaskets can be recycled and reused, lowering long-term waste
- Non-metal gaskets made from PTFE or rubber may have limited recyclability
- Manufacturers now offer eco-friendly materials with reduced VOC emissions
Sustainable gasket choices not only reduce environmental impact but also support green certifications in industries like construction and food processing.
How to Source the Right Gasket Supplier ?
Your gasket is only as reliable as the company that makes it. When sourcing a gasket supplier in India or globally, look for:
- ISO 9001:2015 Certification
- Material Test Certificates (MTCs)
- Customized gasket manufacturing capabilities
- Quick delivery and support services
- Reputation for quality and customer service
Choosing a reliable supplier ensures you get consistent performance, timely delivery, and expert guidance.
Conclusion: Which One Should You Use?
Choosing between metal and non-metal gaskets depends entirely on your specific application, budget, and performance expectations.
- For high-pressure, high-temperature, and critical sealing applications: Go for Metal Gaskets
- For general industrial use, low-pressure systems, and cost-effectiveness: Use Non-Metal Gaskets
- For hybrid requirements: Consider Semi-Metallic Gaskets
When in doubt, consult with a gasket expert or manufacturer to evaluate operating conditions, chemical compatibility, and long-term goals.
