The Essential Guide to Insulation Gaskets for Industrial Applications

In the intricate world of industrial operations, where efficiency, safety, and longevity are paramount, every component plays a crucial role. Among these, insulation gaskets stand out as unsung heroes, silently working to prevent energy loss, mitigate corrosion, ensure electrical safety, and contain critical fluids. For industries ranging from oil and gas to power generation, chemical processing, and beyond, understanding the profound impact and proper selection of these specialized seals is not just beneficial but essential.

What is an Insulation Gasket?

At its core, an insulation gasket is a specialized sealing device designed to create a barrier between two mating surfaces, typically flanges, to prevent the unwanted transfer of:

• Heat (Thermal Insulation): Minimizing heat loss or gain, crucial for energy efficiency and maintaining process temperatures.
• Electricity (Electrical Insulation): Preventing galvanic corrosion between dissimilar metals, isolating pipeline sections for cathodic protection, and ensuring electrical safety in hazardous environments.
• Fluids (Leak Prevention): Providing a tight seal to contain liquids, gases, and other process media, preventing leaks and cross-contamination.

These gaskets are integral to maintaining system integrity, reducing operational costs, and enhancing safety in demanding industrial settings.

Why Are Insulation Gaskets Critical for Industries ?

The importance of insulation gaskets cannot be overstated. Their strategic deployment offers a multitude of benefits across various industrial sectors:

• Corrosion Prevention: This is arguably one of the most significant advantages.
  • Galvanic Corrosion Mitigation: When two dissimilar metals are in contact within an electrolyte (e.g., moisture, process fluids), a galvanic cell is formed, leading to accelerated corrosion of the more anodic metal. Insulation gaskets electrically isolate these metals at flange connections, breaking the circuit and preventing corrosion.
  • Cathodic Protection Enhancement: In buried pipelines, cathodic protection systems are used to prevent external corrosion. Insulation gaskets isolate sections of the pipeline, allowing for more efficient and localized cathodic protection by confining the protective current to specific areas.
  • Stray Current Control: They prevent the flow of unwanted electrical currents that can cause pitting and other forms of corrosion in pipelines and equipment.
• Energy Efficiency & Cost Savings (Thermal Insulation):
  • Reducing heat loss from hot process lines (e.g., steam, hot oil) or preventing heat gain in cold systems (e.g., cryogenic applications).
  • Lowering energy consumption for heating or cooling, leading to significant operational cost reductions.
  • Maintaining stable process temperatures is critical for product quality and process optimization.
• Enhanced Safety:
  • Preventing leaks of hazardous or flammable fluids, thereby reducing the risk of accidents, fires, and environmental contamination.
  • Ensuring electrical safety by isolating live components and preventing electrical shorts in piping systems.
  • Protecting personnel and equipment from potential hazards.
• Extended Equipment Lifespan: By mitigating corrosion and protecting against thermal stress, insulation gaskets significantly extend the operational life of pipes, flanges, valves, and other critical equipment, reducing maintenance frequency and replacement costs.
• System Integrity & Reliability: Contributing to the overall stability and reliability of industrial systems by preventing unexpected failures due to leaks, corrosion, or electrical issues.

Key Industrial Applications of Insulation Gaskets

Insulation gaskets find widespread use across diverse industries, including:

• Oil & Gas (Upstream, Midstream, Downstream): Pipelines (onshore, offshore), refineries, petrochemical plants, wellheads, processing facilities.
• Power Generation: Thermal power plants, nuclear power plants (steam and gas turbine systems, cooling water lines).
• Chemical Processing: Chemical plants, fertilizer production, and pharmaceuticals, where aggressive chemicals and varied temperatures are common.
• Water Treatment: Water distribution systems, wastewater treatment plants, to prevent heat loss and ensure electrical insulation.
• HVAC Systems: Preventing heat transfer and isolating sections.
• Marine & Offshore: Seawater pipelines, offshore platforms, where galvanic corrosion is a major concern.
• Mining: Slurry pipelines and processing equipment.
• Pulp & Paper: Various piping and processing applications.

Types of Insulation Gaskets

Insulation gaskets are available in various configurations and materials to suit different flange types, pressure classes, and operating conditions. The most common types for flange insulation kits include:

• Type E (Full Face Gasket):
  • Description: Covers the entire flange face, including the bolt holes. Its outside diameter matches that of the flange.
  • Benefits: Provides comprehensive sealing and isolation across the entire flange, preventing the collection of foreign material between flange faces that could short the isolation. Offers maximum coverage.
  • Applications: Ideal for lower-pressure applications and where maximum sealing surface is desired. Suitable for flat face and raised face flanges.
• Type F (Raised Face Gasket):
  • Description: Designed to fit only the raised face portion of the flange, inside the bolt circle. Its outside diameter is slightly less than the inside diameter of the bolt circle.
  • Benefits: More compact than Type E, often used in higher-pressure applications.
  • Considerations: Requires external protection (e.g., flange band protectors) to prevent foreign material from bridging the isolated flanges and shorting the insulation.
• Type D (RTJ Gasket – Ring Type Joint Gasket):
  • Description: Precisely machined to fit into the ring groove of RTJ flanges.
  • Benefits: Offers a robust, metal-to-metal seal with excellent sealing integrity for extreme pressure and temperature applications. Provides strong electrical insulation.
  • Applications: Primarily used in high-pressure oil and gas, petrochemical, and power generation industries.
• Specialized Designs: Beyond these standard types, there are also specialized designs like:
  • High-Pressure/Severe Service Gaskets (e.g., KLINGER HPS, Goodrich Type “CS”): Engineered for highly critical applications, capable of withstanding extreme pressures, temperatures, and aggressive media. Often feature a stainless steel core with laminated glass-reinforced epoxy and specialized sealing elements (e.g., spring-energized PTFE or Viton).
  • Fire-Safe Gaskets (e.g., Goodrich Type “FCS”): Designed to maintain sealing integrity and electrical isolation even under fire conditions, often meeting API 6FB standards.

Insulation Gasket Materials

The performance and effectiveness of an insulation gasket are heavily dependent on the materials used. The selection process must consider the application’s specific needs, environmental conditions, and the type of insulation required (thermal, electrical, or both).

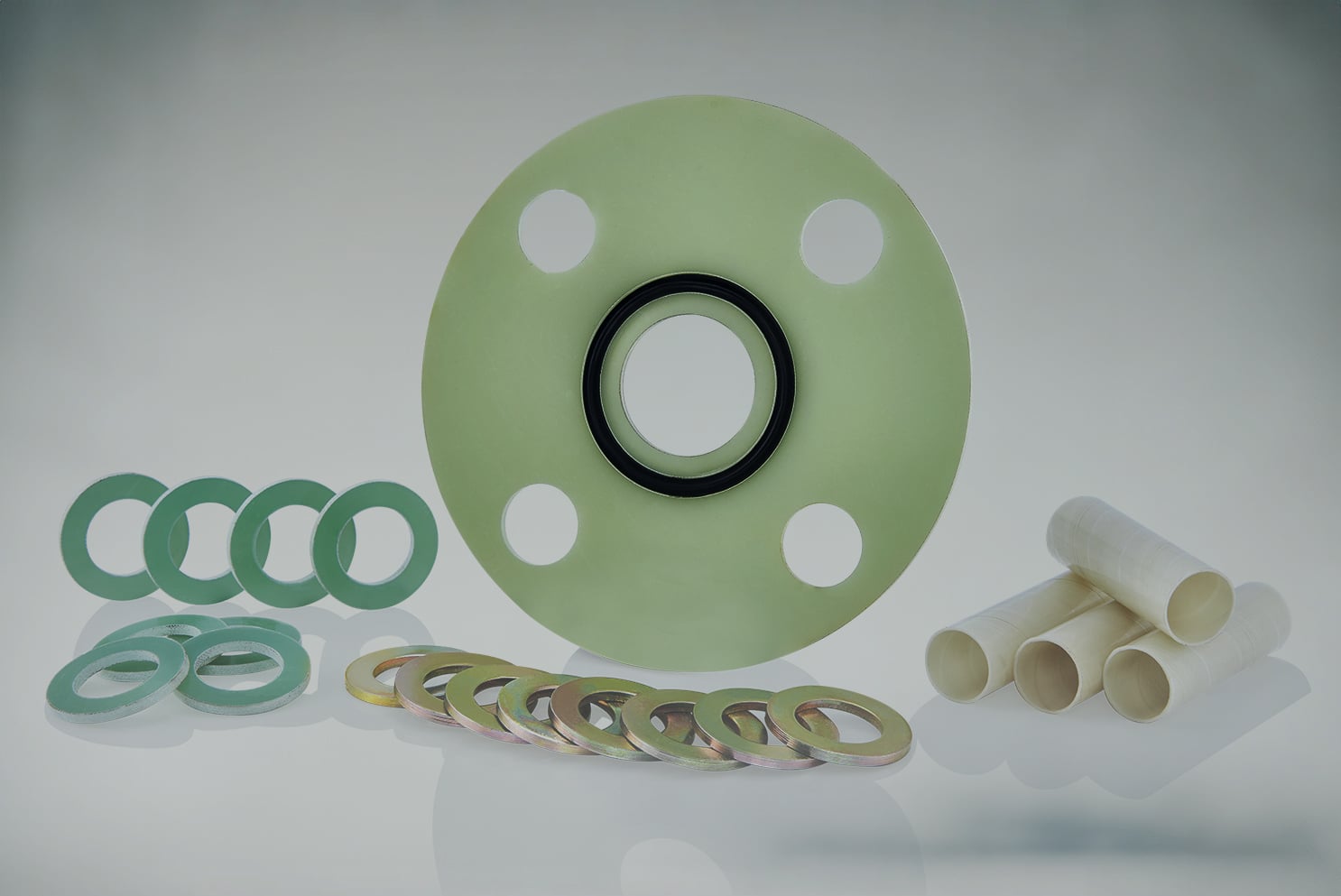

Components of a Complete Flange Insulation Gasket Kit

A complete flange insulation gasket kit is more than just the gasket itself. It typically comprises several vital non-conductive components that work together to provide effective sealing and electrical isolation:

1. Insulating Gasket: The primary sealing and isolating element is placed between the flange faces. (Type E, F, or D).
2. Insulating Sleeves: Non-conductive tubes that fit over the flange bolts, preventing metal-to-metal contact between the bolts and the flange holes.
3. Insulating Washers: Non-conductive washers placed under the nuts and bolt heads, providing an additional layer of electrical isolation. Typically, two insulating washers are used per bolt.
4. Metallic Backup Washers: Often made of zinc-plated carbon steel or stainless steel, these washers are placed outboard of the insulating washers to provide mechanical strength and distribute the bolt load evenly, preventing over-compression or damage to the insulating washers.

How to Select the Right Insulation Gasket ?

Choosing the correct insulation gasket requires a careful evaluation of several critical factors. A wrong selection can lead to premature failure, leaks, corrosion, and costly downtime. Consider the following:

1. Application Type:
   • Is it primarily for electrical isolation (e.g., cathodic protection, dissimilar metals)?
   • Is it for thermal insulation (e.g., energy efficiency)?
   • Is it for fluid containment in highly corrosive environments?
2. Operating Conditions:
   • Temperature: Minimum and maximum operating temperatures. This is crucial for material selection (e.g., G-11 for higher temperatures, Viton for high heat and chemicals).
   • Pressure: System pressure (static and dynamic). This dictates the gasket type (e.g., RTJ for high pressure) and material strength.
   • Media: The type of fluid or gas being transported (e.g., hydrocarbons, acids, bases, steam, water). Chemical compatibility with the gasket material is paramount to prevent degradation.
3. Flange Type and Size:
   • Flange Standard: ASME B16.5, API, DIN, JIS, etc.
   • Flange Facing: Raised Face (RF), Flat Face (FF), Ring Type Joint (RTJ). This determines the gasket profile (Type E, F, or D).
   • Nominal Pipe Size (NPS) and Pressure Class: E.g., 6-inch Class 300, 12-inch Class 900.
4. Electrical Requirements (for electrical insulation):
   • Dielectric Strength: The material’s ability to withstand an electric field without breaking down. Higher values indicate better insulation.
   • Water Absorption: Materials with high water absorption can lose their insulating properties in moist environments.
5. Mechanical Properties:
   • Compressive Strength: The gasket’s ability to withstand the bolt load without crushing or deforming excessively.
   • Creep Resistance (Stress Relaxation): The material’s tendency to deform permanently under continuous stress, especially at elevated temperatures. Good creep resistance ensures long-term seal integrity.
   • Tensile Strength & Flexural Strength: Important for the overall structural integrity of the gasket.
6. Installation and Maintenance:
   • Ease of installation and removal.
   • Requirement for re-torquing after initial heat cycles (common with some non-metallic gaskets).

Specifications and Standards

Reputable manufacturers adhere to international and industry-specific standards to ensure the quality and performance of insulation gaskets. Key standards include:

• ASME B16.5: Pipe Flanges and Flanged Fittings
• API (American Petroleum Institute): Various standards related to oil and gas equipment.
• ASTM (American Society for Testing and Materials): Standards for material properties testing (e.g., ASTM D570 for water absorption).
• NACE International: Standards related to corrosion prevention and control.
• ISO (International Organization for Standardization): Various standards for quality management and product specifications.

When procuring insulation gaskets, always verify that they meet the relevant industry specifications and performance criteria for your application.

Installation and Best Practices for Industrial Insulation Gaskets

The effectiveness of an insulation gasket hinges not just on its quality and material, but critically on its proper installation. Even the most advanced gasket will fail prematurely if installed incorrectly, leading to leaks, corrosion, system downtime, and potential safety hazards. Adhering to meticulous installation procedures and best practices is paramount for maximizing the lifespan and performance of your industrial insulation gaskets.

Pre-Installation Checks

Before even considering placing the gasket, thorough preparation is essential. This stage sets the tone for a leak-free and electrically isolated connection.

1. Safety First: Always ensure the pipeline or equipment section is depressurized, drained, purged, and at ambient temperature. Follow all relevant Lockout/Tagout (LOTO) procedures and plant safety regulations. Wear appropriate Personal Protective Equipment (PPE).
2. Verify the Gasket Kit:
   • Correct Type and Size: Double-check that the insulation gasket and associated components (sleeves, washers) match the flange nominal pipe size (NPS), pressure class (e.g., Class 150, 300, 600), and type (Raised Face, Flat Face, RTJ). The gasket’s Inside Diameter (ID) should generally not be smaller than the pipe’s ID.
   • Material Specification: Confirm the gasket material (e.g., G-10, G-11, PTFE, Phenolic) is as specified and suitable for the operating conditions (temperature, pressure, chemical media).
   • Inspect for Defects: Visually inspect all components for any nicks, cuts, tears, burrs, or manufacturing defects. Even minor flaws can compromise the seal or electrical isolation. Do not use damaged components.
3. Flange Surface Preparation: This is perhaps the most critical step.
   • Cleanliness: Thoroughly clean both flange faces. Remove all old gasket material, rust, scale, paint, oil, grease, dirt, and any other foreign debris. A brass wire brush is often recommended, brushing in the direction of the flange serrations if present.
   • Inspect Flange Faces: Carefully examine the sealing surfaces for any pits, gouges, deep scratches, warpage, or other damage that could create leak paths or hinder electrical isolation. Refer to ASME PCC-1 Appendix D for guidelines on allowable flange surface defects. If significant damage is present, the flange may need resurfacing or replacement.
   • Bolt Holes: Clean bolt holes and check for burrs that could damage insulating sleeves.
4. Bolt, Nut, and Washer Inspection:
   • New Components: Whenever possible, use new bolts, nuts, and metallic washers. Reusing old, stretched, or corroded fasteners can compromise bolt load integrity and lead to joint failure.
   • Thread Integrity: Ensure threads on both bolts and nuts are clean and free-running to allow for accurate torque application.
   • Material Compatibility: Verify that the bolt material is suitable for the service conditions and desired clamp load.
   • Washers: Ensure metallic washers are hardened to prevent “mushrooming” under torque and provide even load distribution.
5. Gasket Storage: Store insulation gaskets horizontally in a clean, dry, and temperature-controlled environment, away from direct sunlight, chemicals, and mechanical stress. This prevents warping or material degradation.

Installation Procedure

Once all pre-installation checks are complete, proceed with the assembly carefully.

1. Flange Alignment:
   • Ensure the two mating flanges are perfectly parallel and concentric. Misalignment can lead to uneven gasket compression, localized stress, and potential leaks or damage to the insulation components.
   • Use appropriate alignment tools (e.g., drift pins for bolt hole alignment) if necessary. Never use excessive force (e.g., pry bars) to pull misaligned flanges together, as this can induce harmful stresses into the piping system and gasket.
   • ASME PCC-1 Appendix E provides guidelines for acceptable flange parallelism and alignment tolerances.
2. Gasket Placement:
   • Carefully insert the insulation gasket between the clean flange faces.
   • Ensure the gasket is properly centered. For Type E (full face) gaskets, inserting a few bolts through both flanges and the gasket can help maintain alignment. For Type F (raised face) gaskets, ensure they sit precisely on the raised face.
   • Crucially, do NOT use any lubricants, grease, joint compounds, or adhesives on the gasket or flange sealing surfaces unless specifically recommended by the gasket manufacturer. These substances can compromise the electrical isolation, reduce surface friction (leading to gasket extrusion), or chemically attack the gasket material.
   • Protect the gasket from pinching or damage as the flanges are brought together.
3. Insert Insulating Components:
   • Insulating Sleeves: Gently insert the non-conductive insulating sleeves into the bolt holes. They should slide in easily. If force is required, recheck flange and bolt hole alignment. Forced sleeves can damage them and compromise isolation.
   • Insulating Washers: Place one insulating washer on each side of the flange, under the nut and bolt head, respectively, ensuring they are correctly oriented (if applicable).
   • Metallic Backup Washers: Place a metallic backup washer outboard of each insulating washer. These steel washers distribute the bolt load evenly and protect the softer insulating washers from damage by the nuts and bolt heads.
4. Bolt Lubrication:
   • Apply a suitable, non-conductive lubricant (anti-seize compound) to the bolt threads and the bearing face of the nuts (the side that contacts the metallic washer). This reduces friction, allowing for accurate and consistent torque application and preventing galling.
   • Ensure the lubricant’s service temperature range is compatible with your process.
   • Prevent lubricant contamination of the gasket or flange sealing surfaces.
5. Bolt Tightening Sequence (Crucial for Gasket Performance):
   • Hand Tighten: Begin by hand-tightening all nuts until snug.
   • Star Pattern (Criss-Cross): For uniform gasket compression and to prevent localized stress, bolts must be tightened in a specific star (or criss-cross) pattern. Number the bolts sequentially around the flange, then follow the pattern (e.g., 1, 5, 3, 7, 2, 6, 4, 8 for an 8-bolt flange).
   • Multi-Pass Method: Apply torque in multiple passes, gradually increasing the load. A common recommended sequence is:
     • Pass 1: Torque each bolt to approximately 30% of the final specified torque value.
     • Pass 2: Torque each bolt to approximately 60% of the final specified torque value.
     • Pass 3: Torque each bolt to 100% of the final specified torque value.
     • Final Passes (Rotational): After reaching 100% torque in the star pattern, perform at least one or two additional full rotational passes (clockwise or counter-clockwise) at 100% torque. This ensures all bolts are uniformly tensioned and compensates for any relaxation during earlier passes. Continue until no further nut rotation occurs at the specified torque.
   • Calibrated Torque Wrench: Always use a calibrated torque wrench or controlled tensioning device (e.g., hydraulic tensioners) to achieve precise and repeatable bolt loads. Avoid impact wrenches for final torquing as they can lead to inconsistent and excessive loads, damaging the gasket.
   • Manufacturer’s Torque Values: Adhere strictly to the insulation gasket manufacturer’s recommended torque values, which are specific to the gasket material, size, and pressure class. These values are often provided in charts or engineering tables.

Post-Installation and Best Practices

1. Visual Inspection Post-Torquing: After tightening, visually inspect the flange joint for any visible gaps or uneven compression around the gasket perimeter. A feeler gauge can be used for larger flanges. If significant unevenness exists, re-evaluate the torque sequence and flange alignment.
2. Electrical Isolation Verification:
   • Before introducing process media, use a multimeter (ohmmeter) to measure the electrical resistance across the isolated flange faces (flange-to-flange) and from each bolt to its respective flange.
   • An ideal reading for electrical isolation is infinite resistance (open circuit). Any measurable conductivity indicates a short circuit that must be identified and rectified before system startup. This could be due to damaged sleeves/washers, conductive debris, or improper material.
3. Re-torquing (Where Applicable):
   • For some gasket materials, especially certain non-asbestos fiber composites or PTFE, re-torquing may be necessary after the initial heat cycle (i.e., after the system reaches operating temperature for the first time and then cools down to ambient). This compensates for any gasket creep or stress relaxation that occurs under elevated temperatures and pressure.
   • Crucially, re-torquing should generally only be performed at ambient temperature and atmospheric pressure. Never re-torque compressed fiber gaskets after they have been exposed to elevated operating temperatures, as this can cause them to crack or fail. Always consult the manufacturer’s specific guidelines for re-torquing.
4. Do Not Re-use Gaskets: For safety and reliability, never re-use old insulation gaskets or any of their components. Gaskets undergo plastic deformation during initial compression, losing their sealing and insulating integrity once decompressed. Always install a new, complete insulation kit.
5. Maintain Records: Keep detailed records of gasket type, material, size, installation date, torque values applied, and installer’s name. This information is invaluable for troubleshooting, future maintenance, and ensuring compliance.

By diligently following these installation steps and best practices, industries can ensure that their insulation gaskets perform optimally, providing critical corrosion prevention, electrical isolation, and leak-free operations, thereby maximizing asset integrity and enhancing overall plant safety and efficiency.

Conclusion

Insulation gaskets are more than just seals; they are vital components that safeguard industrial assets, enhance operational efficiency, and contribute significantly to environmental protection and personnel safety. By understanding their purpose, the various types available, the critical role of material selection, and proper installation practices, industries can make informed decisions that lead to reliable, long-lasting, and cost-effective operations. Investing in high-quality insulation gasket kits is an investment in the long-term integrity and success of your industrial infrastructure.
