At Asian Sealing Products, we specialize in manufacturing high-performance, metal-jacketed gaskets for critical industrial sealing applications. As a leading manufacturer, supplier, and exporter, we combine decades of expertise with a commitment to engineering excellence.
Our gaskets are designed for reliability in extreme environments, featuring high temperatures, elevated pressures, and corrosive media. By encasing a resilient soft filler within a robust metal shell, we provide a solution that balances structural durability with superior sealing properties.
Utilizing premium materials and advanced production techniques, our team meticulously crafts each gasket to meet the most rigorous international standards (ASME, DIN, JIS) and custom client specifications.
Industry standards
API, DIN, BS, and ASME B16.20
Usage of industries
Oil and Gas
Chemical Industry
Power Generation
Mining
Marine
Metal Jacketed Gaskets
At Asian Sealing Products, we specialize in manufacturing high-performance, metal-jacketed gaskets for critical industrial sealing applications. As a leading manufacturer, supplier, and exporter, we combine decades of expertise with a commitment to engineering excellence.
Our gaskets are designed for reliability in extreme environments, featuring high temperatures, elevated pressures, and corrosive media. By encasing a resilient soft filler within a robust metal shell, we provide a solution that balances structural durability with superior sealing properties.
Utilizing premium materials and advanced production techniques, our team meticulously crafts each gasket to meet the most rigorous international standards (ASME, DIN, JIS) and custom client specifications.
Industry standards
API, DIN, BS, and ASME B16.20
Usage of industries
Oil and Gas
Chemical Industry
Power Generation
Mining
Marine
Request A Quote
By submitting this form, you agree to the privacy policy and terms of use.
Metal Jacketed Gaskets Types
Our comprehensive range of metal and corrugated gaskets is engineered to provide reliable, leak-proof sealing in the most demanding industrial environments. By combining the mechanical strength of a precision-formed metal jacket with the superior compressibility of soft filler cores, these gaskets offer exceptional resistance to high pressures, extreme temperatures, and aggressive chemical media. Whether you require standard Double Jacketed Gaskets for high-pressure vessels, custom Exchanger Gaskets with intricate pass partition bars, or the enhanced resilience of Corrugated Metal Gaskets (CMG), our products are manufactured to ensure maximum integrity in critical applications. With an extensive selection of alloys, we provide tailored sealing solutions that excel in thermal cycling and maintain a robust seal where traditional soft gaskets fail.
Our comprehensive range of metal and corrugated gaskets is engineered to provide reliable, leak-proof sealing in the most demanding industrial environments. By combining the mechanical strength of a precision-formed metal jacket with the superior compressibility of soft filler cores, these gaskets offer exceptional resistance to high pressures, extreme temperatures, and aggressive chemical media. Whether you require standard Double Jacketed Gaskets for high-pressure vessels, custom Exchanger Gaskets with intricate pass partition bars, or the enhanced resilience of Corrugated Metal Gaskets (CMG), our products are manufactured to ensure maximum integrity in critical applications. With an extensive selection of alloys, we provide tailored sealing solutions that excel in thermal cycling and maintain a robust seal where traditional soft gaskets fail.
Single Jacketed Gasket
Corrugated Gasket
Solid Gasket
Metal-Jackted Gasket
Your Trusted Partner for Reliable Sealing Solutions
Exceptional Blowout Resistance
The rigid metallic outer shell provides high structural integrity, ensuring the gasket maintains its shape and prevents blowouts even under extreme internal pressures.
High Temperature Stability
Utilizing heat-resistant alloys allows these gaskets to operate reliably in environments ranging from cryogenic levels up to 1000°C.
Superior Chemical Compatibility
The ability to select different alloy jackets allows these gaskets to be tailored for resistance against aggressive acids, alkalis, and hydrocarbon media.
Surface Adaptability
The soft internal filler enables the gasket to compress and conform to minor flange irregularities, ensuring a tight seal even on older equipment.
Custom Geometric Flexibility
These gaskets are easily custom-fabricated into large diameters and complex shapes, including integrated pass partition bars for heat exchangers.
Metal Jacketed Gasket Applications
Metal Jacketed Gaskets are the preferred sealing solution for heavy-duty industrial equipment. Their unique ability to be custom-fabricated into large diameters and complex shapes makes them indispensable in the following sectors:
Metal Jacketed Gaskets are the preferred sealing solution for heavy-duty industrial equipment. Their unique ability to be custom-fabricated into large diameters and complex shapes makes them indispensable in the following sectors:
Oil and Gas
- Pipeline connections
- Flange joints in oil refineries
Chemical Processing
- Sealing joints in chemical reactors
- Flange connections in chemical plants
Power Generation
- Boiler systems
- Flange joints in oil refineries
Petrochemical Plants
- Connecting pipes in petrochemical plants
- Sealing joints in storage tanks
Mining
- Slurry pump connections
- Flange joints in mining equipment
Aerospace
- Reliable sealing solutions for aerospace components
- High-performance gaskets for extreme aerospace conditions
Defense Industries
- Sealing solutions for critical defense systems
- Reliable gaskets for military-grade equipment needs
Minerals Processing
- Durable sealing for harsh mineral environments
- Reliable performance in high-pressure processing systems
Metal Jacketed Gasket Materials
To provide a reliable seal, these gaskets utilize a composite construction that balances strength with flexibility. The metal jacket serves as the outer protective shell, providing the necessary structural integrity and acting as the primary defense against the process media and high pressures. This shell is typically manufactured from alloys like Stainless Steel, Carbon Steel, or Monel, chosen to match the chemical and thermal demands of the application. In contrast, the filler core sits inside the jacket to provide the “spring” and compressibility required to conform to flange surfaces and create a tight, lasting seal. By using resilient materials such as Flexible Graphite, PTFE, or Ceramic, the filler compensates for thermal expansion and mechanical vibrations during operation.
Below is the complete list of available materials and their specific performance characteristics:
Ring gaskets are manufactured using various materials based on the application’s requirements. The material selection depends on factors such as the type of fluids being sealed, operating conditions (including temperature and pressure), and the overall environment. Here are some common materials used for manufacturing ring gaskets:
Soft Iron & Carbon Steel
An economical choice for general non-corrosive steam and oil services, suitable for temperatures up to 500°C.
Stainless Steel (304, 316L, 321)
The industry standard for chemical and food processing, offering high corrosion resistance at temperatures up to 550°C (with 321/347 reaching 800°C).
Copper & Brass
Soft and highly malleable materials ideal for uneven flange faces or air compressors, rated for temperatures between 300°C and 400°C.
Monel 400
Provides exceptional resistance to hydrofluoric acid and marine environments, maintaining integrity up to 500°C.
Inconel (600/625)
Engineered for the most demanding environments, providing superior oxidation resistance in extreme heat up to 1000°C.
Aluminum
A lightweight, corrosion-resistant option often used in specialized gas applications with temperatures up to 300°C.
Flexible Graphite
The most popular choice due to its wide temperature range (-200°C to 550°C) and excellent chemical resistance.
PTFE (Teflon)
Used specifically for high-purity or highly aggressive chemical environments where temperature remains below 260°C.
Ceramic Fiber
Reserved for extremely high-temperature applications (up to 1100°C) where other fillers would degrade.
Non-Asbestos Millboard
A cost-effective, general-purpose filler used for heat insulation and lower-pressure sealing up to 500°C.
Product Details
Specifications
- Economical
- Easy to handle and install
- Suitable for high temperatures
- Suitable for narrow flanges
- Good blow-out resistance

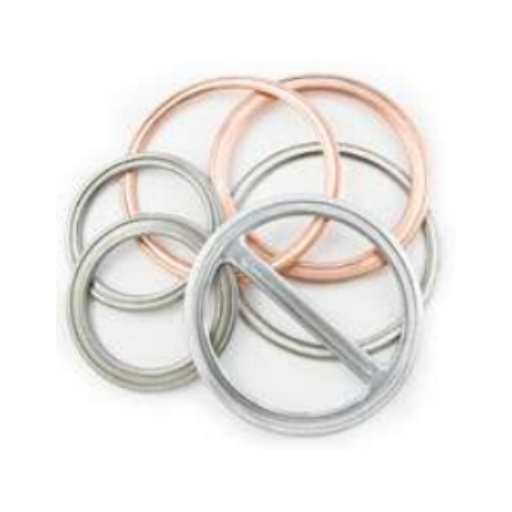

Double Jacketed Gaskets
- Comprising of soft filler encapsulated by a metal jacket and insert. Designed for use on high temperature and pressure applications
- Economical
- Basic with added strength from metallic jacket
- Metal jacket provides increased gasket stability and blow-out resistance
- Chemical resistance to a wide range of media can be accommodated by a selection of a suitable metals

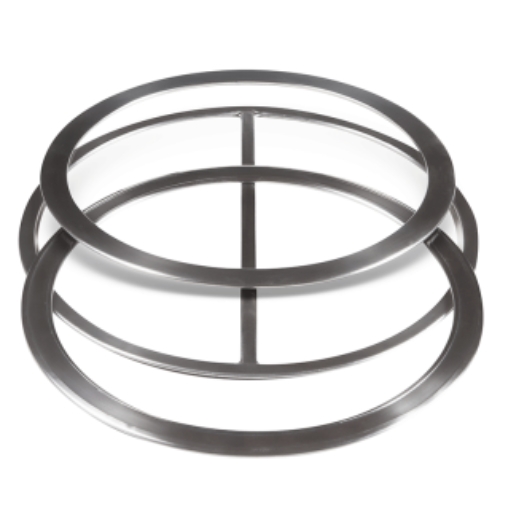

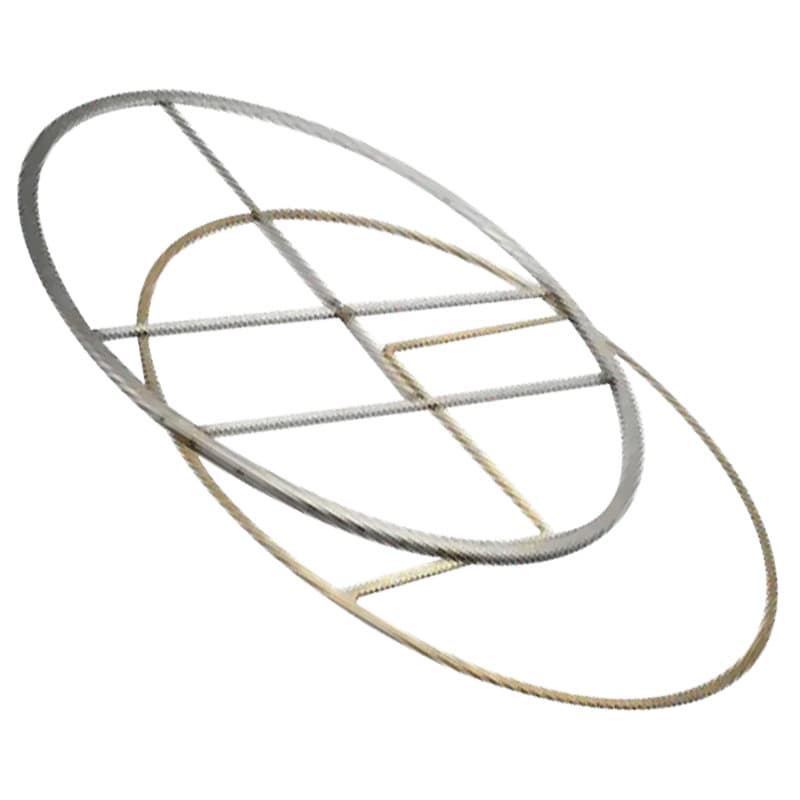

Exchanger Gaskets [Double Jacketed Gaskets]
- Double-jacketed gaskets are probably the most commonly used style of gaskets in heat exchanger applications
- These gaskets are available in virtually any material that is commercially available in 26-gauge sheet
- Double-jacketed gaskets are also extensively used in standard flanges where the service is not critical
- Since most double-jacketed gaskets are custom made, there is virtually no limit to size, shape or configuration in which these gaskets can be made

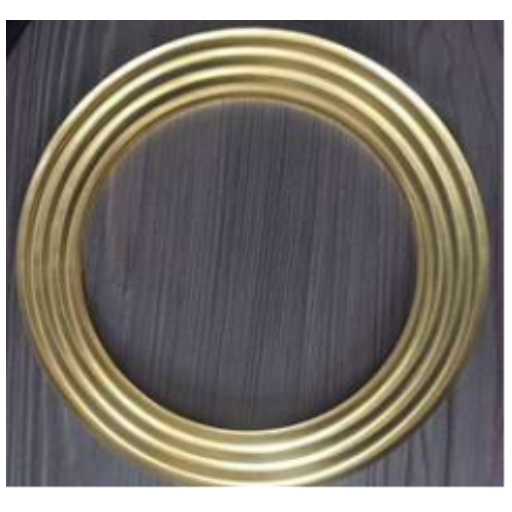

Double Jacketed Corrugated Gasket
- The double-jacketed corrugated gasket is an improvement on a plain-jacketed gasket
- The corrugations on the gasket will provide an additional labyrinth seal
- Provides the advantage of reducing the contact area of the gasket, enhancing its compressive characteristics
- A double-jacketed corrugated gasket still relies on the primary seal on the inner lap

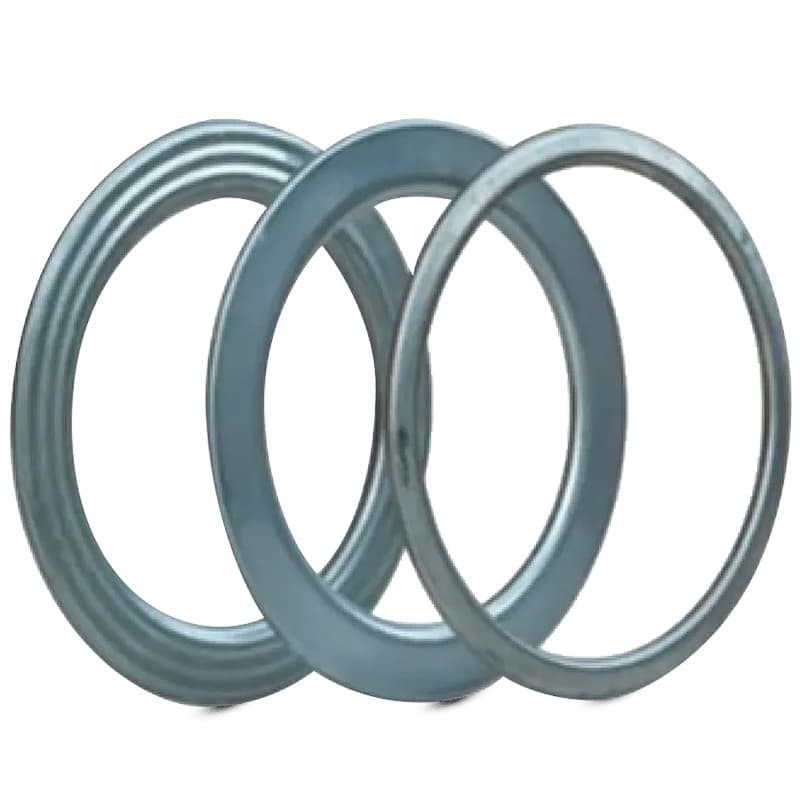

Corrugated Metal Gaskets [CMG]
- The Corrugated Metal Gaskets family of products are the standard in respect to corrugated metal gasket technology
- These gaskets are an excellent choice for 150 and 300 class ASME flanges where available bolt loading is minimal
- The substrate geometry promotes recovery and resilience through thermal cycles and extended service life
- Corrugated Metal Gaskets can be direct replacements for Spiral Wound Gaskets
- Eliminates inward buckling issues while creating a seal at moderate flange stresses
Single Jacketed
- Constructed of soft filler completely enclosed in a single jacket
- Ideal for applications where the width does not permit the use of a double-jacketed gasket
Why Choose Asian Sealing Products’ Metal Jacketed Gasket
The engineering of our Metal Jacketed Gaskets is focused on achieving exceptional sealing performance, making them the superior choice for environments characterized by extreme temperatures and elevated pressures. Whether navigating highly corrosive settings or requiring dependable, custom-fabricated solutions for heat exchangers, our gaskets are meticulously crafted to meet your precise operational requirements. By encasing a high-recovery soft filler within a robust metal jacket, we provide the perfect balance of structural strength and resilience to ensure a leak-proof seal during thermal cycling. To guarantee world-class quality and safety, all our gaskets are manufactured in strict accordance with industry standards, including ASME B16.20, ASME B16.5, and ASME B16.47.
Ready to Upgrade Your Sealing Solutions? Contact us today for a personalized consultation and get a competitive quote on Metal Jacketed Gaskets
Material Selection Strategy
When selecting your materials, we recommend the “Rule of Compatibility”:
- Match the Jacket to the chemical medium and flange material to prevent galvanic corrosion.
- Match the Filler to the maximum operating temperature of your system.
Specifications
Types of Metal Jacketed Gaskets
| Gasket Type | Construction | Uses | Suitability |
|---|---|---|---|
| Double Jacketed Gaskets |
Inner and outer metal jackets with a soft filler material, often graphite or PTFE |
Heat exchangers. Pressure vessels. |
High-temperature applications. Sealing in fluctuating conditions. |
| Exchanger Gaskets (Double Jacketed) |
Dual metal jackets with a filler material provide robust sealing in demanding thermal conditions |
Sealing joints in heat exchangers |
Ideal for applications requiring high temperature and pressure resistance. |
| Double Jacketed Corrugated Gaskets |
It combines the features of double jacketing and groove, providing adaptability and resilience |
Heat exchangers. Flanged connections. |
Suitable for irregular or non-smooth flange surfaces. Resilient under fluctuating conditions. |
| Corrugated Metal Gaskets (CMG) |
Thin metal layers corrugated for flexibility, offering adaptability to uneven or non-standard flanges |
Flanged joints. Irregular or non-smooth flange surfaces. |
Effective in applications with variable conditions. Sealing solutions for irregular flanges. |
| Single Jacketed Gaskets |
Single metal jacket with a soft filler material, offering a balance of sealing performance and cost |
Pressure vessels. Flanged connections |
Suitable for general-purpose applications. Moderate temperature and pressure resistance. |
DOUBLE JACKETED GASKETS – Filler Materials and Temperature Requirements
| Sl.No | Filler Material | Temperature Range | Maximum Working Pressure |
|---|---|---|---|
| 1 | Graphite | min 200°C – max 450 °C | 250 bar |
| 2 | PTFE | min 200°C – max 240°C | 100 bar |
| 3 | Aramide (CNAF) | min 70°C – max 220°C | 150 bar |
DOUBLE JACKETED GASKETS – Jacketed Materials and Temperature Requirements
| Sl.No | Jacketed Material | Maximum Temperature |
|---|---|---|
| 1 | Aluminium (Al) | 350°C |
| 2 | Carbon Steel | 500°C |
| 3 | Copper (Cu) | 310°C |
| 4 | Hastelloy B-2 | 450°C |
| 5 | Hastelloy C-276 | 450°C |
| 6 | Inconel 600 | 1000°C |
| 7 | Inconel 625 | 450°C |
| 8 | Incoloy 800 | 800°C |
| 9 | Inconel X-750 | 1000°C |
| 10 | UNS N04400 / MONEL 400 | 450°C |
| 11 | Titanium Gr.2 | 350°C |
| 12 | Incoloy 825 | 450°C |
| 13 | Nickel 200 | 315°C |
| 14 | Soft Iron | 500°C |
| 15 | Bronze | 350°C |
| 16 | Brass | 250°C |
| 17 | UNS S30403 (SS 304L) / UNS S30400 (SS 304) | 650°C |
| 18 | UNS S31603 (SS 316L) / UNS S31600 (SS 316) | 800°C |
| 19 | UNS S32100 / SS 321 | 800°C |
| 20 | UNS S34700 / SS 347 | 800°C |
| 21 | UNS S31803 / DUPLEX S31803 | 800°C |
| 22 | Super Duplex | 600°C |
| 23 | UNS S31254 / SMO 254 | 600°C |
Download Brochures
Answers to all your possible questions.
When should I choose a Double Jacketed Gasket over a Spiral Wound Gasket?
Double Jacketed Gaskets are typically preferred for heat exchangers with complex pass partition bars and large diameters where a narrow sealing width is required. While Spiral Wound Gaskets offer better recovery, Double Jacketed types are easier to custom-fabricate into non-circular shapes and are often more cost-effective for large-scale equipment.
Can these gaskets be used on uneven or old flange surfaces?
Yes, particularly the Double Jacketed Corrugated or Copper-jacketed versions. The soft filler and corrugated metal profile allow the gasket to conform better to minor flange irregularities than a standard flat metal gasket, though high seating stress is still required for a perfect seal.
What configurations are available for your metal jacketed gaskets?
Our metal jacketed gaskets offer versatility in manufacturing with the ability to adopt various configurations. These gaskets commonly incorporate a non-asbestos, high-temperature gasket material filler suitable for applications reaching up to 900°F (482°C). For elevated temperatures or specific applications, alternative soft fillers are also accessible. The standard metals utilized in crafting jacketed gaskets include aluminum, copper, brass steel, nickel, Monel®, Inconel®, and stainless steel variations such as types 304, 316, 321, 347, and 410. The selection of jacket metal is contingent upon the specific service conditions encountered.
How do I choose the right jacket material for corrosive media?
Material selection depends on the chemical concentration and temperature. For example, Stainless Steel 316L is excellent for general corrosion, while Monel 400 is preferred for hydrofluoric acid or seawater, and Inconel is best for high-temperature oxidation. Our technical team can help you match the alloy to your specific media.
Are your Metal Jacketed Gaskets compliant with international standards?
Absolutely. We manufacture all gaskets to meet or exceed ASME B16.20, ASME B16.5, and ASME B16.47 standards, ensuring dimensional accuracy and safety for high-pressure industrial use.
What information is needed to provide a quote for a custom heat exchanger gasket?
To provide an accurate quote, we typically require the outer diameter (OD), inner diameter (ID), thickness, the specific metal/filler materials, and a drawing or description of the pass partition bar configuration.
