Welcome to Asian Sealing Products, the legend of industrial sealing excellence—our PTFE gaskets. Ensure leak-proof and durable sealing solutions with our high-quality PTFE (Polytetrafluoroethylene) and CNAF (Compressed Non-Asbestos Fiber) gaskets. Designed to withstand extreme temperatures, aggressive chemicals, and high-pressure environments, our gaskets provide unmatched reliability across multiple industries. This product page sets forth a comprehensive exploration, uncovering the importance of PTFE gaskets.
Usage of industries
Oil and Gas
Chemical Industry
Power Generation
Mining
Marine

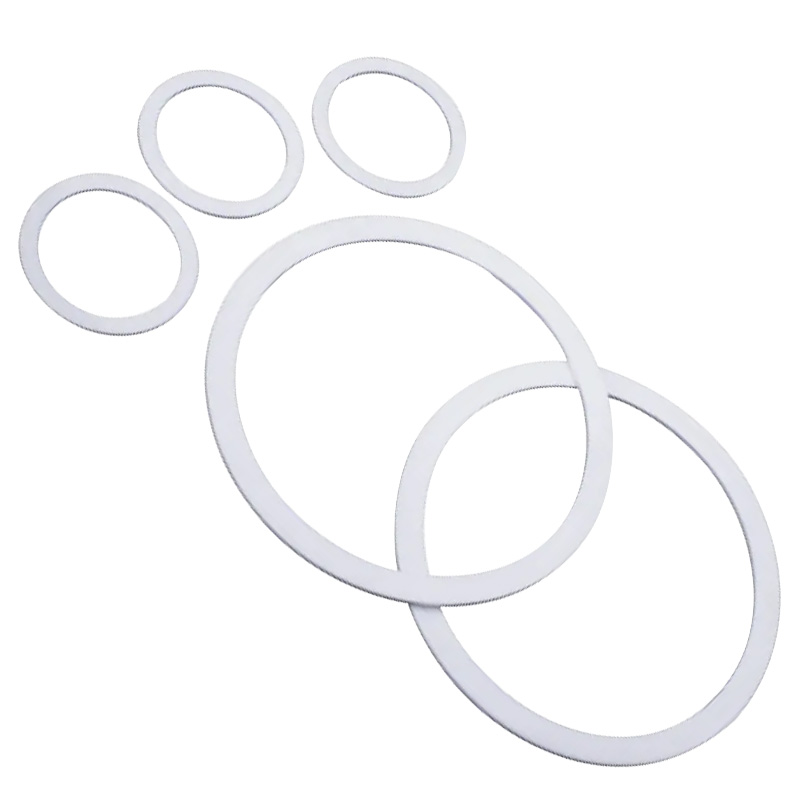

PTFE and CNAF Gaskets
Welcome to Asian Sealing Products, the legend of industrial sealing excellence—our PTFE gaskets. Ensure leak-proof and durable sealing solutions with our high-quality PTFE (Polytetrafluoroethylene) and CNAF (Compressed Non-Asbestos Fiber) gaskets. Designed to withstand extreme temperatures, aggressive chemicals, and high-pressure environments, our gaskets provide unmatched reliability across multiple industries. This product page sets forth a comprehensive exploration, uncovering the importance of PTFE gaskets.
Usage of industries
Oil and Gas
Chemical Industry
Power Generation
Mining
Marine
Request A Quote
By submitting this form, you agree to the privacy policy and terms of use.
PTFE and CNAF Gasket Types
At Asian Sealing Products, we manufacture 2 types of PTFE and CNAF gaskets with the highest quality, and we will ensure that the PTFE and CNAF gaskets are delivered to the customers on time.
At Asian Sealing Products, we manufacture 2 types of PTFE and CNAF gaskets with the highest quality, and we will ensure that the PTFE and CNAF gaskets are delivered to the customers on time.
ReinforCedGraphite
Gasket Reinforcements
General Compressed
Non-Asbestos Fibre
PTFE and CNAF Gasket Applications
Every industry has its unique sealing challenges. In pharmaceuticals, it’s about maintaining purity. In petrochemicals, it’s about resisting harsh chemicals. In general industry, it’s about cost-effective reliability. That’s why we offer a range of PTFE and CNAF gaskets. PTFE gaskets excel in those high-stakes, demanding environments where failure isn’t an option. CNAF gaskets or non-asbestos gaskets, with their versatility and durability, are perfect for a wide variety of industrial applications. Together, they offer comprehensive solutions to meet diverse sealing challenges across numerous industries. We’re committed to providing solutions that meet the specific needs of your industry.
Every industry has its unique sealing challenges. In pharmaceuticals, it’s about maintaining purity. In petrochemicals, it’s about resisting harsh chemicals. In general industry, it’s about cost-effective reliability. That’s why we offer a range of PTFE and CNAF gaskets. PTFE gaskets excel in those high-stakes, demanding environments where failure isn’t an option. CNAF gaskets or non-asbestos gaskets, with their versatility and durability, are perfect for a wide variety of industrial applications. Together, they offer comprehensive solutions to meet diverse sealing challenges across numerous industries. We’re committed to providing solutions that meet the specific needs of your industry.
Pharmaceutical
- Flourishing within the landscapes of pharmaceutical environments
- PTFE gaskets guarantee proper sealing and safeguarding of equipment.
Petrochemical Resilience
- In the rigorous conditions of petrochemical settings, PTFE gaskets are essential, offering steadfast sealing solutions
Food and Beverage Prowess
- Due to rising food and beverage processing demands
- these gaskets are pivotal in maintaining impeccable hygienic conditions and optimizing operational processes
Aerospace Precision
- Integrated into aerospace machinery, PTFE gaskets play a pivotal role
- providing reliable seals to endure and overcome the distinctive challenges of aerospace environments
PTFE and CNAF Gasket Materials
PTFE and CNAF gaskets are manufactured using various materials based on the application’s requirements. The material selection depends on factors such as the type of fluids being sealed, operating conditions (including temperature and pressure), and the overall environment. Here are some common materials used for manufacturing PTFE and CNAF gaskets:
Ring gaskets are manufactured using various materials based on the application’s requirements. The material selection depends on factors such as the type of fluids being sealed, operating conditions (including temperature and pressure), and the overall environment. Here are some common materials used for manufacturing ring gaskets:
Natural Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 80°C
Neoprene Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 100°C
Silicone Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 215°C
EPDM Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 148°C
Butyl Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 100°C
Nitrile Rubber (NBR)
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 105°C
Viton Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 204°C
SBR Rubber
Shore Hardness : 50° – 80° Shore D. Maximum Operating Temperature : 100°C
Product Details

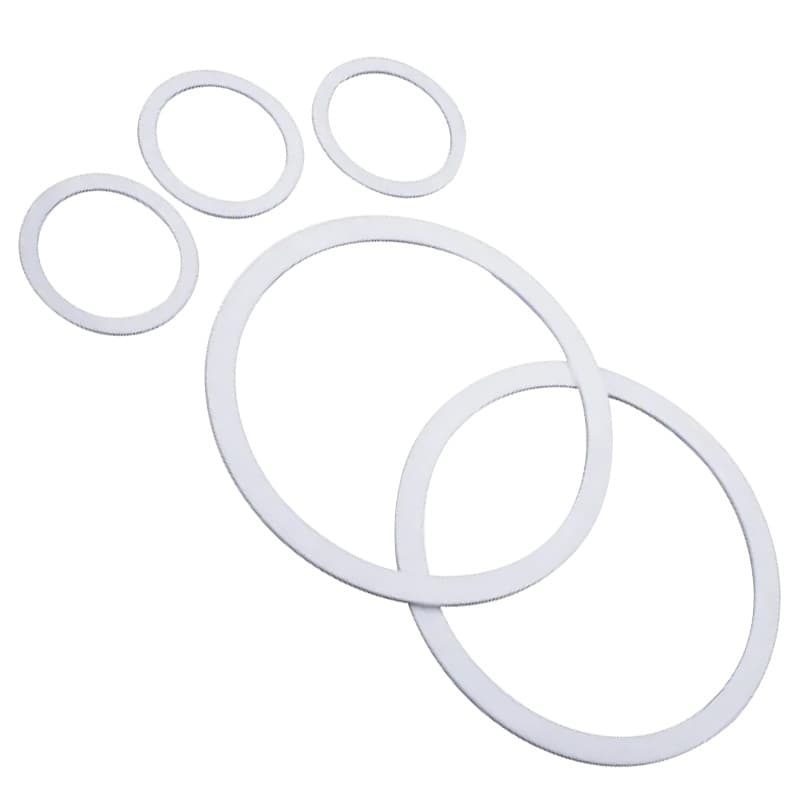

PTFE Gasket Types and its Properties
Explore our diverse range of PTFE gaskets, each meticulously crafted to meet the unique demands of various industries. We understand that one size doesn’t fit all, which is why we offer a variety of PTFE gasket types, each designed for specific applications. Discover the perfect match for your needs.
Raised-Face Gaskets:
- Designed for use with raised-face flanges.
- The gasket’s outer diameter matches the flange’s raised face.
- Commonly used in high-pressure applications.
Full-Face Gaskets:
- Designed for use with flat-face flanges.
- The gasket covers the entire flange face, including bolt holes.
- Provides maximum sealing surface and distributes pressure evenly.
- Often used on weaker flanges.
Customized Gasket Types:
- Manufactured to specific dimensions and shapes to meet unique application requirements.
- Ideal for non-standard flanges or specialized equipment.
- Can be made from any type of PTFE.
Envelope Gaskets:
- Consists of a PTFE outer layer (envelope) surrounding a core material (e.g., rubber, fiber).
- PTFE envelope gaskets comprise a compressed synthetic fiber gasket material insert with a PTFE envelope
- The envelope protects the gasket from chemical attacks and provides required strength and resilience for demanding sealing operations
- PTFE envelope gaskets offer excellent chemical resistance under moderate conditions of temperature and pressure.
Expanded PTFE Gaskets (ePTFE):
- Made from expanded PTFE, which has a fibrous microstructure.
- Highly compressible and conformable, providing excellent sealing on irregular surfaces.
- Expanded PTFE materials have excellent creep resistance and bolt torque retention properties
- Offers superior chemical resistance and a wide temperature range.
- Often sold as tape, or sheet stock.
- Since the material is available in roll form, it offers a solution to jointing needs without the need to maintain large stocks of cut gaskets
Filled PTFE Gaskets (Glass-filled, Carbon-filled):
- PTFE blended with fillers like glass or carbon to enhance specific properties.
- Glass-filled PTFE: Increases compressive strength and reduces creep.
- Carbon-filled PTFE: Improves wear resistance and electrical conductivity.
- The fillers alter the mechanical properties of the pure PTFE.

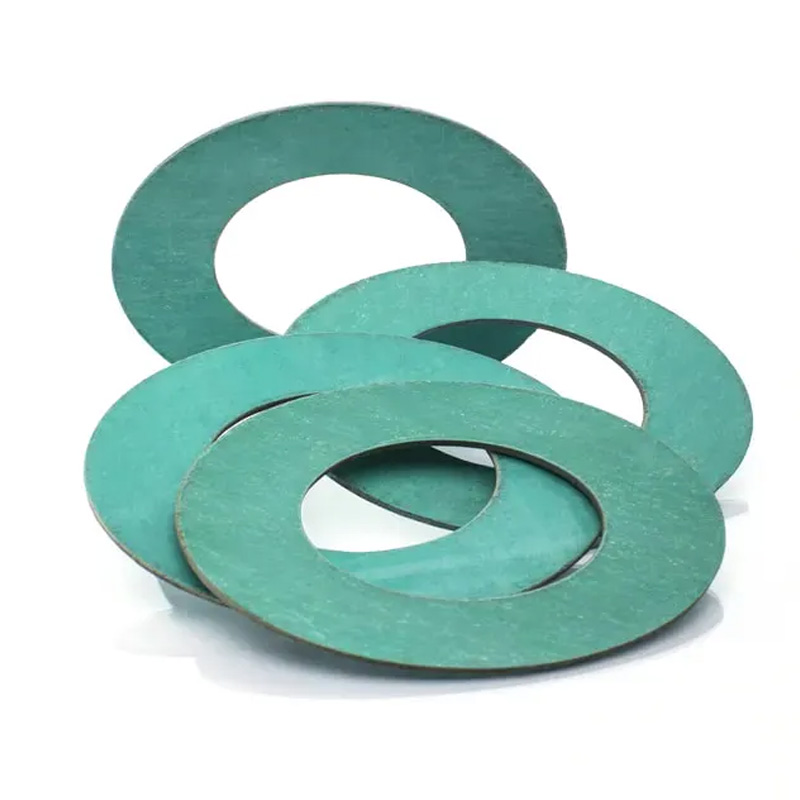

CNAF Gasket Types and its Properties
Our product line features a wide array of CNAF gaskets, each designed to meet the specific requirements of different industrial applications. We offer various CNAF types, formulated with different fiber and binder combinations, to ensure optimal performance in diverse operating conditions. Explore our selection to find the right CNAF gasket for your needs.
Aramid Fiber with NBR Binder
- Good resistance to oils, fuels, hydrocarbons
- Successful in internal combustion engine applications
- Available in sheet form as cut gaskets
- 3xA anti-stick finish on both sides
Glass Fiber with NBR Binder
-
- Adds structural integrity to the gasket
- It is a fantastic economical option for general industrial services
- Exhibit good resistance to a variety of chemicals.
- 3xA anti-stick finish on both sides
Aramid Fiber with SBR/NR Binder
- Premium grade, controlled-swell materials
- Available in sheet form and as cut gaskets
- 3xA anti-stick finish on both sides
- lower resistance to oils and fuels compared to NBR
- perform well in applications involving water, air, and other non-aggressive fluids.
- Remarkable chemical resistance

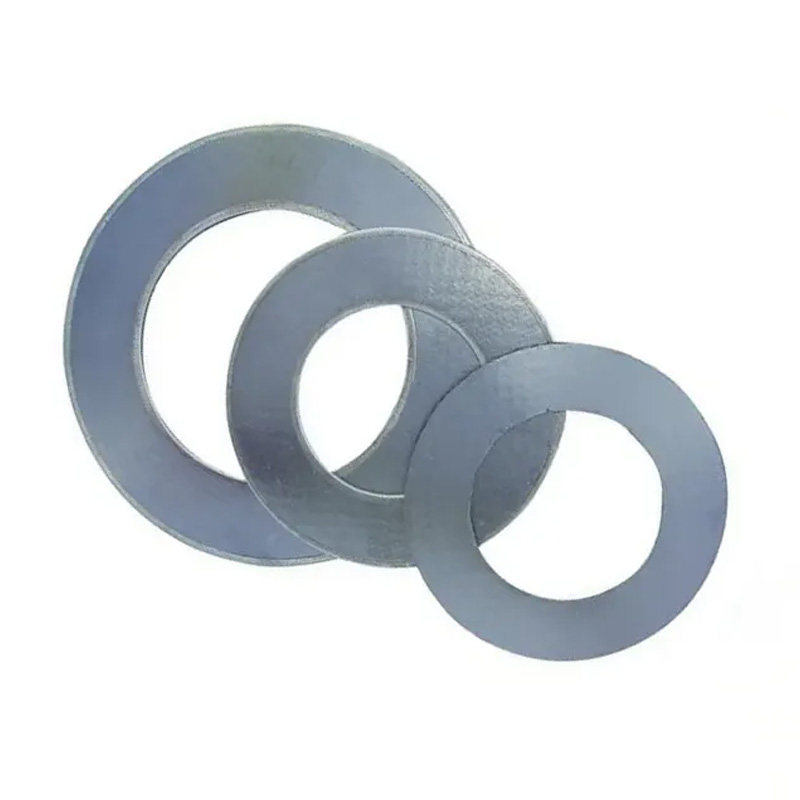

Reinforced Graphite Gaskets
The “reinforced” aspect refers to the addition of a reinforcing material, typically a metal, to enhance the gasket’s structural integrity. They’re made from pure carbon that’s been specially treated to expand its structure. This expanded carbon is then rolled into thin, flexible foils. These foils are layered together to create thicker sheets for gaskets and seals.
- Reinforced graphite gaskets are a crucial component in many industrial applications, particularly those involving extreme temperatures and pressures.
- Ideal for steam applications as they don’t harden over time.
- Long service life.
- Versatile chemical compatibility.
- Reinforced Graphite Gaskets Reinforcement:
- Tanged Stainless steel 316
- Tanged Stainless steel 304
Expanded PTFE Properties
- Combination rings or transition rings combine two different sizes having the same pitch diameter permitting bolt up of differing size flanges
Specifications
PTFE Gaskets Material Grade Types
| Sl.No | Grade | Filler Content by Weight (%) | Properties |
|---|---|---|---|
| 1 | Virgin PTFE | Nil | Hygienic. Excellent Chemical Resistance. Outstanding electrical properties. |
| 2 | Glass filled PTFE | 15 – 25 | High compressive strength. Excellent chemical resistance. Improved wear resistance under load & permanent deformation. |
PTFE Gaskets – Requirement of Material Properties
| Sl.No | Material | Shore Hardness | Maximum Operating Temperature |
|---|---|---|---|
| 1 | PTFE (Polytetrafluoroethylene) | 50° – 65° Shore D | 240°C |
| 2 | 25% Glass filled PTFE (Polytetrafluoroethylene) | 60° – 75° Shore D | 240°C |
| 3 | 25% Carbon filled PTFE (Polytetrafluoroethylene) | 60° – 75° Shore D | 240°C |
