In high-pressure industrial environments, sealing failure is not just a maintenance issue — it can lead to production downtime, safety risks, environmental hazards, and major financial losses. This is why industries such as oil & gas, petrochemicals, offshore drilling, and power generation rely on advanced metallic sealing systems like VX and AX gaskets.
VX and AX gaskets are specially engineered ring joint sealing solutions designed for demanding applications where standard gaskets cannot perform reliably. Their ability to withstand extreme pressure, aggressive chemicals, vibration, and harsh operating temperatures makes them essential in critical industrial systems.

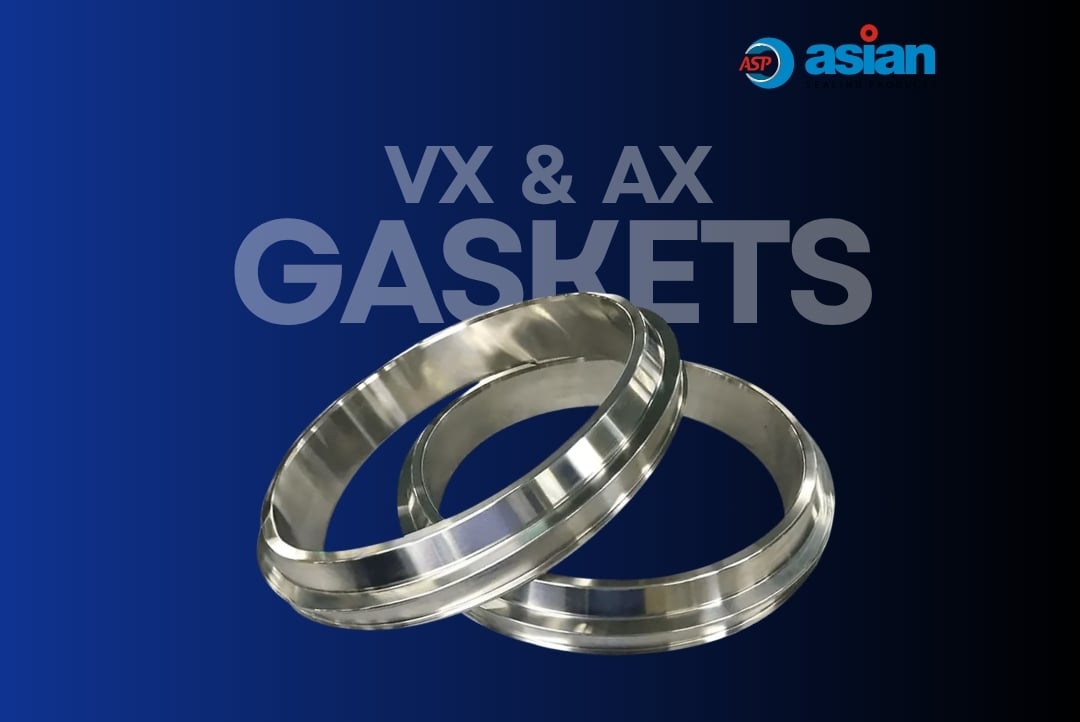

What Are VX and AX Gaskets?
VX and AX gaskets are specialized metallic ring joint gaskets used primarily in high-pressure subsea, offshore, and oilfield applications. These gaskets are designed to create leak-proof metal-to-metal sealing between mating surfaces.
Unlike conventional soft gaskets, VX and AX gaskets work using pressure-energized sealing principles. As internal pressure increases, the gasket sealing efficiency improves, making them highly dependable for critical operations.
These gaskets are commonly manufactured through forging, precision machining, and heat treatment processes to ensure dimensional accuracy and mechanical strength.
Understanding VX Gaskets
What Is a VX Gasket?
A VX gasket is a pressure-energized metallic seal designed mainly for face-to-face hub sealing systems. It is widely used in subsea wellhead systems, offshore connectors, and high-pressure drilling equipment.
VX gaskets are engineered to deliver superior sealing performance in applications involving:
- Extremely high pressure
- High temperatures
- Aggressive chemicals
- Offshore subsea operations
- Critical oil & gas systems
The design allows direct contact between hubs, ensuring strong sealing integrity even in highly demanding environments.
Key Features of VX Gaskets
Exceptional Pressure Resistance
VX gaskets are specifically developed for ultra-high-pressure applications. Their pressure-energized structure enhances sealing as operating pressure increases.
Metal-to-Metal Sealing
These gaskets provide reliable metal sealing that minimizes leakage risks in critical systems.
High Temperature Capability
VX gaskets can operate efficiently in elevated temperature conditions common in offshore drilling and refining industries.
Corrosion and Chemical Resistance
Depending on the material selected, VX gaskets can resist corrosive chemicals, seawater exposure, hydrocarbons, and harsh process fluids.
Long Service Life
Precision manufacturing and durable materials help VX gaskets maintain performance under repeated pressure cycles.
Understanding AX Gaskets
What Is an AX Gasket?
AX gaskets are metallic pressure-energized ring joint gaskets primarily designed for hydraulic connectors and offshore drilling systems.
These gaskets are commonly used as lightweight alternatives to traditional API flange sealing systems. AX gaskets are especially suitable for applications requiring quick installation and dependable sealing performance.
Key Features of AX Gaskets
Pressure-Energized Performance
AX gaskets become more effective as system pressure rises, improving overall sealing reliability.
Lightweight Construction
Compared to heavier flange systems, AX gaskets simplify installation and reduce operational handling time.
Fast Installation
They are commonly preferred in offshore systems where quick assembly and maintenance are important.
Excellent Sealing Reliability
AX gaskets are designed for dependable sealing in demanding industrial applications.
Compatibility With Various Materials
They are available in multiple metallic grades suitable for different operating conditions.
Difference Between VX and AX Gaskets
Although both VX and AX gaskets are used in high-pressure sealing applications, their design purpose and installation systems differ.
| Feature | VX Gasket | AX Gasket |
|---|---|---|
| Primary Application | Face-to-face hub sealing | Hydraulic connector sealing |
| Operating Environment | Subsea and offshore systems | Offshore drilling systems |
| Design Purpose | High-pressure hub connectors | Lightweight hydraulic connectors |
| Sealing Type | Metal-to-metal | Pressure energized |
| Installation | Hub-based sealing | Connector-based sealing |
| Common Industry | Oil & gas, subsea drilling | Offshore drilling and wellhead systems |
Asian Sealing Products explains that VX gaskets are mainly used for hub sealing while AX gaskets are intended for flange or connector sealing systems. (asiansealing)
Materials Used in VX and AX Gaskets
Material selection plays a major role in gasket performance. The choice depends on pressure, temperature, fluid type, and corrosion resistance requirements.
Common materials include:
- Soft Iron
- Low Carbon Steel
- Stainless Steel 304
- Stainless Steel 316
- SS410
- Inconel 625
- Inconel 825
- Monel 400
- Hastelloy
- Titanium
- Nickel Alloys
- Copper
- Aluminium
Some VX gaskets are also available with silver plating or special coatings to improve sealing and reduce galling.
Surface Coating and Plating Options for VX and AX Gaskets
Surface coatings and plating treatments play an important role in improving the overall performance, durability, and sealing efficiency of VX and AX gaskets. In demanding offshore and high-pressure environments, these additional surface treatments help protect the gasket against corrosion, galling, and installation damage while also enhancing sealing reliability.
Silver Plating
Silver plating is one of the most commonly used surface treatments for metallic ring joint gaskets. It improves gasket seating and helps create a more effective seal between mating surfaces. Silver plating also reduces friction during installation and minimizes the risk of galling, especially in high-pressure flange assemblies.
PTFE Coating
PTFE coating provides excellent chemical resistance and helps protect the gasket from aggressive media and corrosive environments. It also improves installation smoothness and reduces surface wear in certain applications where additional chemical protection is required.
Zinc Coating
Zinc coating is mainly used to improve corrosion resistance during storage and transportation. It provides a protective barrier against moisture and environmental exposure, helping extend the shelf life of the gasket before installation.
Anti-Galling Surface Treatments
Anti-galling treatments are especially important for high-pressure metal-to-metal sealing systems. These treatments reduce surface friction between contact areas, preventing material transfer and damage during tightening or removal of the gasket.
Corrosion-Resistant Finishes
Special corrosion-resistant finishes are often applied for offshore, subsea, and chemical processing applications where gaskets are exposed to seawater, chemicals, and harsh operating conditions. These finishes help maintain gasket integrity and reduce long-term surface degradation.
Benefits of Surface Coatings in VX and AX Gaskets
Improved Sealing Performance
Surface coatings help create better contact between sealing surfaces, improving leak prevention in critical high-pressure systems.
Enhanced Corrosion Resistance
Protective finishes reduce the impact of moisture, chemicals, and aggressive industrial environments, increasing gasket durability.
Better Installation Reliability
Coatings reduce friction and surface damage during installation, making assembly smoother and minimizing the chances of sealing failure caused by galling or improper seating.
Extended Service Life
By protecting the gasket surface from wear and corrosion, coatings contribute to longer operational life and reduced maintenance frequency.
Industries Using VX and AX Gaskets
Oil and Gas Industry
These gaskets are heavily used in upstream and downstream oil & gas operations due to their ability to handle extreme pressure and hazardous fluids.
Applications include:
- Wellheads
- Christmas trees
- Blowout preventers
- Subsea connectors
- High-pressure pipelines
Offshore Drilling
AX and VX gaskets are widely preferred in offshore drilling systems where reliable sealing is critical for operational safety.
Petrochemical Plants
Chemical resistance and temperature stability make these gaskets suitable for aggressive process media.
Power Generation
High-pressure steam and thermal systems require durable sealing solutions capable of maintaining integrity under continuous operation.
Marine Industry
Offshore and marine equipment often utilize VX and AX gaskets because of their corrosion-resistant properties.
Advantages of VX and AX Gaskets
Reliable Leak Prevention
These gaskets are designed for critical systems where even minor leakage can create operational hazards.
Improved Safety
Strong sealing integrity helps reduce risks associated with pressure loss, gas leakage, or hazardous fluid escape.
Excellent Mechanical Strength
Forged metallic construction offers durability under severe operating conditions.
Better Operational Efficiency
Reduced leakage and maintenance downtime improve overall plant performance.
Long-Term Cost Savings
Although metallic gaskets may initially cost more than standard sealing solutions, their durability and performance reduce long-term maintenance expenses.
Pressure Rating of VX and AX Gaskets
VX and AX gaskets are designed for ultra-high-pressure applications commonly found in offshore and oilfield operations.
Typical Pressure Capability
| Gasket Type | Typical Pressure Range | Common Applications |
|---|---|---|
| AX Gasket | Up to 15,000 PSI | Hydraulic connectors, offshore drilling |
| VX Gasket | Up to 20,000 PSI and above | Subsea hub systems, wellhead connectors |
| High-Performance VX Designs | 20,000+ PSI | HPHT and subsea applications |
The actual pressure rating depends on:
- Flange or hub design
- Material grade
- Operating temperature
- Surface finish
- Installation torque
- Applicable API specifications
VX gaskets are generally preferred in more critical high-pressure subsea systems due to their enhanced pressure-energized sealing capability.
Temperature Rating of VX and AX Gaskets
The operating temperature capability of VX and AX gaskets mainly depends on the gasket material and coating used.
Typical Operating Temperature Range
| Material | Approximate Temperature Capability |
|---|---|
| Soft Iron | Up to 500°C |
| Stainless Steel 304/316 | Up to 700°C |
| Duplex Stainless Steel | Moderate to high-temperature service |
| Inconel 625 | Up to 1000°C+ |
| Hastelloy | Excellent extreme-temperature resistance |
| Titanium | Moderate temperature with high corrosion resistance |
Installation Considerations
Proper installation is essential for achieving optimal sealing performance.
Important practices include:
- Ensure sealing surfaces are clean and damage-free
- Verify gasket dimensions before installation
- Avoid scratches on sealing surfaces
- Follow correct torque procedures
- Use compatible flange or connector systems
- Inspect for deformation before reuse
Improper installation can damage even high-quality VX gaskets, especially in heavy subsea equipment applications. Industry discussions show that misalignment and repeated reuse can lead to galling or sealing failure.
Storage and Handling Guidelines for VX and AX Gaskets
Proper storage and handling are essential for maintaining the sealing integrity and dimensional accuracy of VX and AX gaskets. Even high-quality metallic gaskets can suffer performance issues if they are damaged, contaminated, or improperly stored before installation.
Store in Dry Environments
VX and AX gaskets should always be stored in clean, dry environments away from moisture, humidity, and direct exposure to corrosive chemicals. Excess moisture can lead to surface corrosion and reduce gasket performance over time.
Prevent Surface Scratches
The sealing surfaces of metallic gaskets must remain smooth and damage-free. Scratches, dents, or impact damage can affect sealing efficiency and increase the risk of leakage during operation.
Avoid Improper Stacking
Improper stacking may deform the gasket profile or damage the sealing edges. Gaskets should be stored carefully using separators or protective packaging to avoid metal-to-metal contact.
Use Protective Packaging
Protective packaging helps prevent contamination, corrosion, and physical damage during storage and transportation. Proper packing is especially important for precision-machined high-pressure gaskets.
Inspect Before Installation
Before installation, every gasket should be visually inspected for scratches, corrosion, deformation, or other damage. Damaged gaskets should never be reused in critical sealing applications.
Standards and Specifications
VX and AX gaskets are commonly manufactured according to international sealing standards, including:
- API 6A
- API 17D
- ASME B16.20
- DIN standards
- JPI specifications
These standards ensure dimensional accuracy, material quality, and performance reliability for critical industrial applications.
How to Choose the Right VX or AX Gasket
Selecting the correct gasket requires careful evaluation of operating conditions.
Pressure Rating
Always choose a gasket suitable for the system’s operating pressure.
Temperature Conditions
Extreme heat applications require appropriate alloy materials.
Chemical Compatibility
The gasket material must resist the media being sealed.
Flange or Connector Type
VX and AX gaskets are designed for specific sealing systems, so compatibility is essential.
Industry Standards
Ensure the gasket meets required API or ASME specifications.
Corrosion Resistance
Offshore and subsea systems often require advanced corrosion-resistant alloys.
Common Causes of Gasket Failure
Even premium sealing solutions can fail due to incorrect usage or installation.
Typical causes include:
- Improper torque application
- Damaged sealing surfaces
- Wrong gasket material selection
- Reusing damaged gaskets
- Corrosion or galling
- Excessive vibration
- Thermal cycling
Regular inspection and proper maintenance significantly improve sealing reliability.
Why Industries Prefer Metallic Ring Joint Gaskets
Metallic ring joint gaskets like VX and AX types are preferred because they offer:
- Higher sealing integrity
- Better pressure handling
- Improved resistance to blowouts
- Greater durability
- Better reliability in critical systems
These characteristics make them essential in industries where sealing failure is unacceptable.
Conclusion
VX and AX gaskets are among the most reliable sealing solutions for high-pressure and high-temperature industrial environments. Their pressure-energized metallic sealing design provides exceptional durability, leak prevention, and operational safety in critical offshore, oil & gas, petrochemical, and subsea applications.
While VX gaskets are mainly designed for face-to-face hub sealing, AX gaskets are optimized for hydraulic connector systems and offshore drilling operations. Selecting the correct gasket type, material, and specification is essential for ensuring long-term sealing performance and system reliability.
As industrial systems continue to operate under increasingly demanding conditions, advanced metallic sealing solutions like VX and AX gaskets remain vital components for safe and efficient operations.
FAQs
VX gaskets are mainly used for face-to-face hub sealing systems, while AX gaskets are designed for hydraulic connector and offshore drilling applications.
In critical high-pressure applications, reusing metallic gaskets is generally not recommended unless they are thoroughly inspected and approved for reuse.
These gaskets are widely used in oil & gas, offshore drilling, subsea systems, petrochemical plants, marine applications, and power generation industries.
Common materials include stainless steel, soft iron, Inconel, Monel, Hastelloy, titanium, and other corrosion-resistant alloys depending on application requirements.
Surface coatings improve sealing performance, reduce galling, enhance corrosion resistance, and increase installation reliability.
Common causes include improper installation, incorrect torque application, damaged sealing surfaces, corrosion, thermal cycling, and using incompatible gasket materials.
Yes. These gaskets are specifically designed for demanding offshore and subsea environments where high pressure and reliable sealing are essential.
They should be stored in dry, clean environments using protective packaging to prevent scratches, corrosion, and physical damage before installation.
