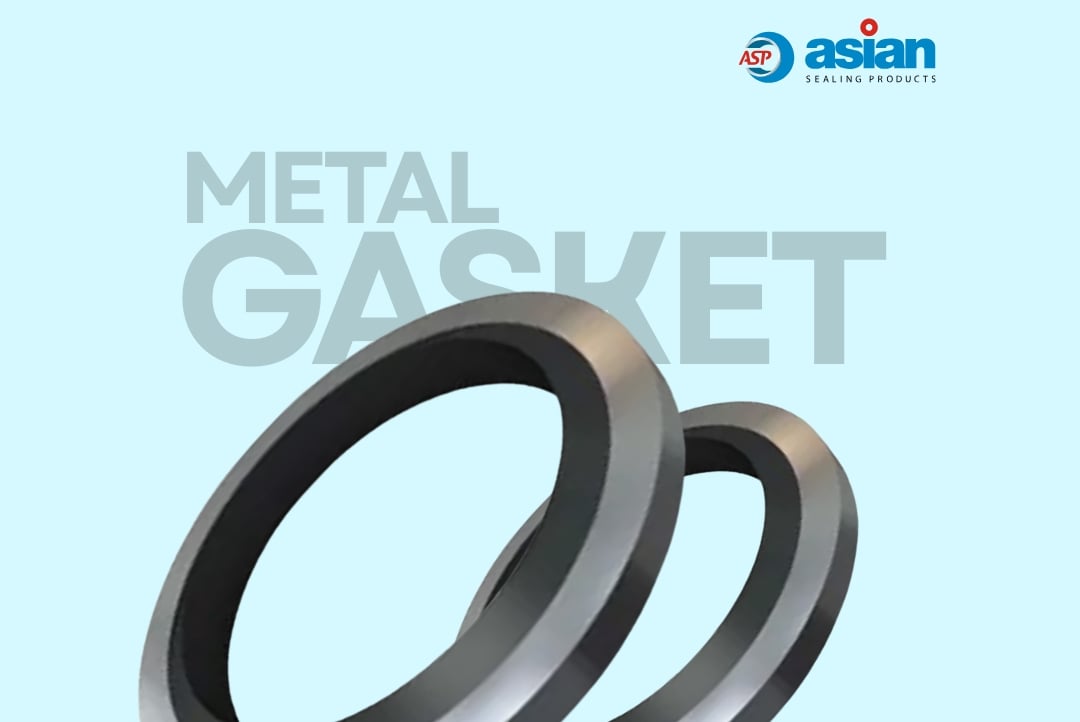

Comprehensive Guide to Metal Gaskets (Understanding, Selection, and Installation)

by Divya Jain | Jan 18, 2024

Custom-sized Metal Gaskets

Table Of Contents

    In the intricate world of industrial operations, where fluids flow under immense pressures and temperatures, and where corrosive chemicals can eat through lesser materials, the humble gasket plays a critical, often unsung, role. Among the vast array of sealing solutions, metal gaskets stand out as the workhorses, providing robust and reliable seals in the most demanding environments. This comprehensive guide will delve into the world of metal gaskets, exploring their types, materials, applications, and crucial selection criteria, equipping you with the knowledge to make informed decisions for your industrial needs.

    Why Metal Gaskets ?

    While non-metallic gaskets offer flexibility and cost-effectiveness for less severe applications, metal gaskets are the go-to choice when conditions push the limits. Their inherent properties provide a distinct advantage:

    • High-Temperature Resistance: Unlike elastomers or fiber-based gaskets that degrade under extreme heat, many metals maintain their integrity at temperatures exceeding 1000°C (1832°F).
    • High-Pressure Capability: Metal gaskets can withstand immense pressures, making them ideal for high-pressure pipelines, valves, and vessels where leak prevention is paramount.
    • Chemical Compatibility: Specific metal alloys offer excellent resistance to a wide range of corrosive chemicals, acids, and alkalis, preventing degradation and maintaining seal integrity in aggressive media.
    • Durability and Longevity: Their inherent strength and resistance to creep and relaxation ensure a long service life, reducing maintenance downtime and associated costs.
    • Blow-out Resistance: The robust construction of metal gaskets makes them highly resistant to blow-out under surge conditions or pressure fluctuations.

    Types of Metal Gaskets

    Metal gaskets come in various designs, each tailored to specific operational requirements and flange configurations. Understanding these types is crucial for proper selection.

    1. Spiral Wound Gaskets (SWG)

    Spiral Wound Gaskets are arguably the most common type of metal gasket for general industrial use. They consist of a spirally wound V-shaped metal strip (filler) and a softer non-metallic filler material (e.g., graphite, PTFE) forming alternating layers. Outer and/or inner rings are often incorporated for centering and compression control.

    Table 1: Common Filler and Winding Materials for Spiral Wound Gaskets
    Filler MaterialWinding Material (Metal)Typical Applications
    Flexible Graphite304 SS, 316L SSGeneral purpose, high temp/pressure, steam, hydrocarbons
    PTFE304 SS, 316L SSChemical processing, strong acids, caustics (lower temp)
    Ceramic304 SS, 316L SSVery high temperatures (e.g., exhaust systems)
    MicaInconel, MonelHigh temperature, some chemical resistance
    Advantages:
    • Excellent resilience and recovery under fluctuating loads.
    • Good for a wide range of temperatures and pressures.
    • Compensates for minor flange irregularities.
    • Available in various material combinations for chemical compatibility.

    Applications: Pipelines, valves, pumps, heat exchangers, and pressure vessels in oil & gas, petrochemical, power generation, and chemical industries.

    2. Ring Type Joint (RTJ) Gaskets

    Ring gaskets are solid metal rings with a specific cross-sectional shape (oval or octagonal) designed to fit into corresponding grooves in RTJ flanges. The sealing action occurs through the “coining” or plastic deformation of the softer gasket material into the harder flange grooves when the bolt is tightened.

    Table 2: RTJ Gasket Profiles
    ProfileDescriptionUsage
    OvalOlder design, good for flat-bottomed grooves.Less common for new installations, but still found in older systems.
    OctagonalMore common, higher sealing efficiency due to line contact with groove.Widely used in high-pressure and high-temperature applications.
    BXDesigned for API 6A flanges, high pressure, pressure-energized seal.Oil & gas wellhead equipment, drilling applications.
    RXAlso for API 6A flanges, allows for some radial movement.Similar to BX, but with some tolerance for misalignment.
    Advantages:
    • Extremely robust and reliable for high-pressure and high-temperature applications.
    • Excellent blow-out resistance.
    • Self-energizing under internal pressure (BX/RX types).

    Applications: Oil and gas industry (wellheads, Christmas trees, drilling equipment), high-pressure steam, power generation, offshore platforms.

    3. Metal Jacketed Gaskets

    Metal Jacketed gaskets consist of a soft filler material (e.g., mica, PTFE, asbestos-free fibers) completely enclosed or “jacketed” by a thin metallic outer layer. The metal jacket protects against chemical attack, and blow-out, and improves mechanical strength.

    Table 3: Common Jacketing and Filler Materials
    Jacketing MaterialFiller MaterialTypical Applications
    CopperNon-asbestos, GraphiteLow to medium pressure, good thermal conductivity.
    Stainless SteelNon-asbestos, GraphiteGeneral purpose, good chemical resistance.
    MonelNon-asbestos, GraphiteCaustics, seawater, and some acids.
    PTFENon-asbestosHighly corrosive chemicals (lower temperature limit).
    Advantages:
    • Offers good resilience due to the soft core.
    • Protects the filler from corrosive media.
    • Can be custom-made for various shapes and sizes.

    Applications: Heat exchangers, boilers, pressure vessels, ducting, and exhaust systems.

    4. Solid Metal Gaskets (Flat Metal Gaskets)

    As the name suggests, these are solid pieces of metal, precisely machined to the desired shape and thickness. They rely on the uniform compression of the metal against the flange faces to create a seal.

    Advantages:
    • Extremely durable and robust.
    • Suitable for very high temperatures and pressures where minimal leakage is tolerated.
    • Can be used as shims or spacers.
    Limitations:
    • Require highly polished and flat flange faces.
    • Less resilient than other types, demanding precise bolt-up.
    • Limited recovery once compressed.

    Applications: High-pressure hydraulic systems, vacuum applications, very high-temperature furnace applications, and some automotive uses.

    5. Corrugated Metal Gaskets

    These gaskets feature a corrugated or rippled metal core, which provides multiple sealing lines and enhances resilience. They may or may not have a soft-facing material.

    Advantages:
    • Good resilience and recovery.
    • Can compensate for minor flange imperfections.
    • Multiple sealing lines improve leak integrity.

    Applications: Heat exchangers, exhaust systems, and some pipe flanges.

    Metal Gasket Materials and Their Properties

    The choice of metal is paramount and depends heavily on the operating conditions, including temperature, pressure, and chemical compatibility.

    Table 4: Common Metal Gasket Materials and Their Characteristics
    MaterialMax. Temp (approx.)*Key CharacteristicsTypical Applications
    Carbon Steel400°C (750°F)Economical, good strength, susceptible to corrosion.Low-pressure, non-corrosive environments, general utility.
    304 Stainless Steel800°C (1470°F)Good corrosion resistance, good strength, widely available.General chemical, food & beverage, water, steam.
    316L Stainless Steel800°C (1470°F)Improved corrosion resistance (especially to pitting and crevice corrosion) due to molybdenum content, and lower carbon.Caustics, acids (moderate), marine environments, and pharmaceutical.
    Monel 400540°C (1000°F)Excellent resistance to seawater, hydrofluoric acid, sulfuric acid, and caustics.Marine, chemical processing, offshore.
    Inconel 6001000°C (1830°F)High-temperature strength, good oxidation resistance, good resistance to chloride stress-corrosion cracking.High-temperature furnaces, power generation, nuclear.
    Inconel 6251000°C (1830°F)Excellent strength and corrosion resistance across a wide range of temperatures, good for highly corrosive acids.Aerospace, chemical processing, sour gas service.
    Titanium400°C (750°F)Excellent resistance to oxidizing acids, chlorides, and seawater; high strength-to-weight ratio.Aerospace, chemical processing, medical, corrosive wet chlorine.
    Nickel 200600°C (1100°F)High resistance to caustic soda, good electrical and thermal conductivity.Caustic service, food processing, electronics.
    Copper300°C (570°F)Good thermal and electrical conductivity, soft, easily deformable, excellent for low-pressure, high-vacuum.Vacuum systems, electrical connections, some heat exchangers.
    Aluminum200°C (400°F)Lightweight, good thermal conductivity, low strength.Low-pressure, non-corrosive, good for soft sealing.

    Note: Maximum temperatures are approximate and can vary based on specific alloy, pressure, and chemical environment. Always consult the manufacturer’s specifications.

    Critical Factors in Metal Gasket Selection

    Choosing the right metal gasket is paramount to ensuring leak-free operation, safety, and cost-effectiveness. A misstep in selection can lead to catastrophic failures, environmental damage, and significant downtime.

    1. Operating Temperature & Pressure
    • Continuous Temperature: The primary concern is the maximum continuous temperature the gasket will experience. This dictates the choice of metal alloy and any non-metallic fillers. While a material might have a high “maximum” temperature, its continuous operating limit might be lower, especially if oxidation or creep are concerns.
    • Temperature Fluctuations: For applications with thermal cycling, gaskets with good resilience (e.g., spiral wound, corrugated) are preferred to maintain the seal under expansion and contraction.
    • System Pressure: The maximum internal pressure the system will experience is critical. RTJ gaskets are typically favored for very high pressures (up to 20,000 psi for BX type). Spiral wound gaskets can handle pressures up to Class 2500 (approx. 400 bar or 5800 psi).
    • Pressure Fluctuations/Surges: Gaskets with high blow-out resistance are essential for applications with dynamic pressure conditions.
    • Pressure-Temperature (P-T) Ratings: Flanges, and thus gaskets, are rated by pressure-temperature classes (e.g., ASME Class 150, 300, 600, etc., or PN 10, PN 16, PN 25 in Europe). These ratings define the maximum allowable working pressure at a given temperature. The gasket chosen must meet or exceed the P-T rating of the flange.
    2. Chemical Compatibility
    • Fluid Composition: Identify all chemicals, including trace elements and potential impurities, that will come into contact with the gasket. This is crucial for selecting a metal that resists corrosion, dissolution, or degradation.
    • Concentration and pH: The concentration and pH of corrosive media significantly impact material degradation. Oxidizing vs. reducing environments also play a major role.
    3. Flange Type and Finish
    • Flange Face Type: Different gaskets are designed for specific flange faces (e.g., raised face, flat face, RTJ grooves, tongue and groove).
    • Flange Surface Finish: The roughness of the flange face (measured in Ra – Roughness average) directly impacts sealing effectiveness, especially for solid metal gaskets. Smoother finishes (e.g., 3.2 Ra for RTJ, 3.2-6.3 Ra for spiral wound) are required for harder gasket materials to ensure proper seating.
    • Flange Material and Strength: The flange material and its strength should be considered to ensure it can withstand the compressive forces required to seat the gasket without deforming or cracking. The gasket material should generally be softer than the flange material to allow the gasket to deform and fill imperfections without damaging the flange.
    4. Gasket Seating Stress
    • Minimum Seating Stress (Y value): This is the minimum compressive stress required to seat the gasket and make it conform to the flange surface irregularities, creating an initial seal. It’s often determined under low-pressure conditions.
    • Minimum Operating Stress (m factor): This is the minimum stress required to maintain the seal under operating conditions, accounting for internal pressure.
    • Maximum Gasket Stress (Crush Strength): The maximum stress a gasket can withstand without being crushed or losing its integrity. Over-compression can damage the gasket and compromise the seal.
    • These values are critical for proper bolt load calculations and are often specified in standards like ASME Boiler and Pressure Vessel Code (BPVC), Section VIII, Division 1.
    5. Leakage Class
    • For critical applications, a specified leakage rate or “tightness class” may be required (e.g., as per EN 13555 or ASME B16.20). This quantifies the acceptable level of fluid loss and influences gasket material and design choices. Metal gaskets generally provide very low leakage rates.
    6. Gasket Dimensions and Configuration
    • Inner and Outer Diameter: Precise measurements are essential to ensure the gasket fits correctly within the bolt circle and provides an effective seal. Adherence to dimensional standards is key.
    • Thickness: The thickness of the gasket influences its compressibility and sealing performance.

    7. Application Specifics

    • Vibration: Applications with significant vibration may require gaskets with good resilience to maintain the seal.
    • Vacuum Service: Special considerations are needed for vacuum applications to prevent outgassing (especially for filler materials) and ensure a tight seal.
    • Cyclic Loading: If the joint is subject to frequent assembly/disassembly, the gasket’s reusability (though generally not recommended for metal gaskets) or ease of replacement should be considered.
    • Environmental Regulations: Compliance with environmental regulations regarding fugitive emissions (e.g., VOCs) may influence gasket material selection and require more stringent leakage performance.

    Standards for Metal Gaskets

    To ensure interoperability, safety, and performance, metal gaskets are manufactured and tested according to various international and regional standards.

    Table 5: Key Standards for Metal Gaskets
    StandardScopeApplicable Gasket Types
    ASME B16.20Metallic Gaskets for Pipe Flanges: This is a cornerstone standard in North America. It covers materials, dimensions, tolerances, and markings for metal ring-joint gaskets, spiral-wound metal gaskets, and grooved metal gaskets (often with covering layers). It specifies dimensional suitability for use with flanges from ASME B16.5, ASME B16.47, and API 6A. Also includes minimum seating stress and maximum permissible leakage rates for certain types.Spiral Wound, Ring Type Joint (RTJ), Grooved Metal (Kammprofile)
    API 6ASpecification for Wellhead and Christmas Tree Equipment: This standard specifically addresses equipment for oil and gas wellheads, and within it, provides specifications for Ring Type Joint (RTJ) gaskets (R, RX, BX types) used in these high-pressure, high-integrity applications. Often references ASME B16.20 for gasket dimensions.Ring Type Joint (RTJ) specifically for oil & gas wellhead equipment
    EN 1514 (various parts)Flanges and their joints – Gaskets for PN-designated flanges: A series of European Standards covering various gasket types for use with flanges designed to EN 1092-1 (PN series).
    EN 1514-2Spiral wound gaskets for use with steel flanges.Spiral Wound Gaskets
    EN 1514-4Corrugated, flat or grooved metallic and filled metallic gaskets for use with steel flanges.Corrugated Metal Gaskets, Solid Metal Gaskets, Kammprofile Gaskets
    EN 1514-6Covered serrated metal gaskets for use with steel flanges.Kammprofile (Grooved Metal) Gaskets
    EN 1514-7Covered metal jacketed gaskets for use with steel flanges.Jacketed Gaskets
    JIS B2404Gaskets for pipe flanges: This Japanese Industrial Standard specifies dimensions and certain characteristics for various types of gaskets, including metallic gaskets, used with JIS pipe flanges (e.g., JIS B 2220, B 2239, B 2240, B 2241).Various (including Spiral Wound, Ring, and other metallic types for JIS flanges)
    ASME BPVC Section VIII, Division 1Rules for Construction of Pressure Vessels: This code, while not exclusively a gasket standard, provides rules for the design of bolted flange connections, including methods for calculating gasket seating and operating stresses (m and Y factors) for various gasket types to ensure a leak-tight joint.General guidance for gasket design parameters and flange calculations for all types.
    NACE MR0175/ISO 15156Petroleum and natural gas industries – Materials for use in H2S-containing environments in oil and gas production: This standard is critical for selecting materials, including gasket metals, that can resist sulfide stress cracking in sour service applications (environments containing hydrogen sulfide).All metallic gaskets in sour service

    Metal Gaskets Installation Best Practices

    Even the highest quality metal gasket will fail if not installed correctly. Adhering to proper installation procedures is vital:

    • Cleanliness: Ensure flange faces and gaskets are free of dirt, debris, oil, or old gasket material.
    • Inspection: Inspect flanges for any damage, scratches, or warping. Inspect the gasket for defects.
    • Alignment: Ensure flanges are properly aligned before inserting the gasket.
    • Lubrication: Lubricate bolt threads and nut contact surfaces to ensure even torquing and prevent galling.
    • Torquing Sequence: Follow the manufacturer’s recommended bolt torqueing sequence (typically a star pattern) and torque values in multiple passes to ensure uniform compression.
    • Retorqueing: Some applications may require retorqueing after initial operation and temperature cycling.

    Industries Reliant on Metal Gaskets

    Metal gaskets are indispensable across a vast array of heavy industries:

    • Oil & Gas: Upstream, midstream, and downstream operations, including pipelines, refineries, and petrochemical plants, rely heavily on metal gaskets for high-pressure and high-temperature hydrocarbon service.
    • Power Generation: Thermal power plants (coal, gas, nuclear) utilize metal gaskets in boilers, turbines, steam lines, and heat exchangers operating under extreme conditions.
    • Chemical Processing: Industries handling corrosive acids, alkalis, and solvents depend on chemically resistant metal gaskets to prevent leaks and ensure safety.
    • Aerospace: High-performance metal gaskets are used in aircraft engines, hydraulic systems, and spacecraft for their reliability under extreme temperatures and pressures.
    • Marine: Shipbuilding and offshore applications require corrosion-resistant metal gaskets for seawater and harsh marine environments.
    • Automotive: Exhaust systems, turbochargers, and some engine components use metal gaskets for high-temperature sealing.
    Conclusion

    Metal gaskets are more than just simple sealing components; they are engineered solutions that ensure the safety, efficiency, and longevity of critical industrial systems. By understanding the diverse types, material properties, and crucial selection criteria, industries can make informed choices that mitigate risks, reduce downtime, and optimize operational performance. Investing in the right metal gasket is an investment in the reliability and integrity of your entire operation.

    Frequently Asked Questions

    What is the primary advantage of a metal gasket over a non-metallic gasket?

    The primary advantage of metal gaskets is their superior performance in high-temperature, high-pressure, and highly corrosive environments where non-metallic gaskets would degrade or fail. They offer higher strength, durability, and resistance to blow-out.

    Can metal gaskets be reused?

    Generally, no. Metal gaskets, especially those that rely on plastic deformation for sealing (like RTJs or solid metal gaskets), are designed for single use. Once compressed, their internal structure or shape is altered, and they cannot guarantee the same sealing performance if reused. Spiral wound gaskets, while having some resilience, are also typically not recommended for reuse due to potential damage to the winding element and loss of filler material. Always replace gaskets during maintenance or disassembly.

    What is the significance of the “m” and “Y” factors for gaskets?

    The “m” (maintenance factor) and “Y” (minimum seating stress) factors are crucial design parameters used in flange design calculations (e.g., ASME BPVC).

    • Y (Yield or Seating Stress): Represents the minimum compressive stress (psi or MPa) required on the gasket contact area to seat the gasket and achieve an initial seal, especially at zero internal pressure. It ensures the gasket conforms to flange imperfections.
    • m (Gasket Factor): Represents the ratio of residual gasket stress to internal fluid pressure required to maintain the seal under operating conditions. It accounts for the gasket’s ability to resist internal pressure after it has been seated. These factors help engineers determine the appropriate bolt load to ensure a leak-tight joint.
    How do I know which metal material to choose for my gasket?

     The material selection depends on several factors:

    • Temperature: The maximum and minimum operating temperatures.
    • Pressure: The system pressure.
    • Medium: The chemical composition of the fluid or gas being sealed, including its corrosivity.
    • Flange Material: The gasket material should generally be softer than the flange material to prevent damage to the flange.
    • Cost vs. Performance: Balancing performance requirements with budget constraints. Always refer to reputable material compatibility charts and consult with gasket manufacturers for specific recommendations.
    What is “sour service” and why is it important for metal gaskets?

    Sour service refers to environments containing hydrogen sulfide (H2​S). H2​S can cause embrittlement and cracking in certain metal alloys, particularly carbon steels and some stainless steels, leading to catastrophic failure. For gaskets used in sour service, materials must comply with standards like NACE MR0175/ISO 15156, which specify material requirements for resistance to sulfide stress cracking.

    What is a “leakage class” for a gasket?

    A leakage class quantifies the permissible leakage rate of a gasket under specific test conditions. For example, ASME B16.20 now includes a maximum permissible leakage rate for spiral wound gaskets. These classes help define the tightness requirements for a joint, especially important for hazardous or environmentally sensitive fluids (e.g., fugitive emissions). Tighter leakage classes typically require higher quality gaskets, precise installation, and sometimes, specialized designs.

    Can I use a metal gasket for vacuum applications?

    Yes, certain metal gaskets are suitable for vacuum applications. Soft metals like copper are often used for ultra-high vacuum (UHV) systems due to their low outgassing properties and ability to form a strong seal when highly compressed. Other metal gaskets, particularly those with solid metal components or very dense fillers, can also perform well in vacuum, provided the filler material (if any) does not outgas significantly.
